Rigging Hardware And Their Uses

Many industries face the challenge of safely moving heavy objects. For some, it's as simple as stacking products on a shipping pallet and carrying them with a forklift. For others, heavy and irregularly shaped objects have to be lifted and moved over significant vertical and horizontal distances by specialized equipment, including cranes and hoists. They use various rigging and lifting hardware to facilitate efficient and, most importantly, safe overhead lifting.

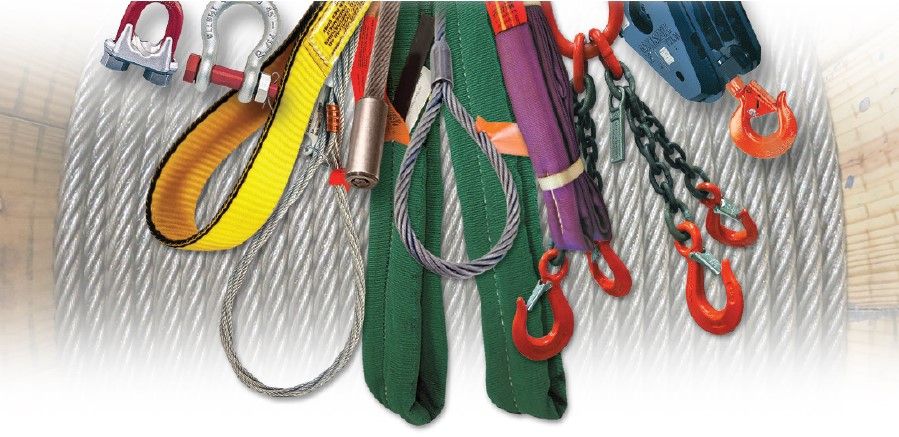

Rigging hardware is the equipment used to secure, lift, and suspend loads. Rigging itself is the chains, ropes, and cables that tie items down or lift them. If you're a sailor, you'll be familiar with the rigging used to set and furl sails, as well as the associated hardware, which includes blocks, shackles, and winches. In a lifting context, rigging has a similar role, except it is often equipment, machines, and construction materials being lifted.

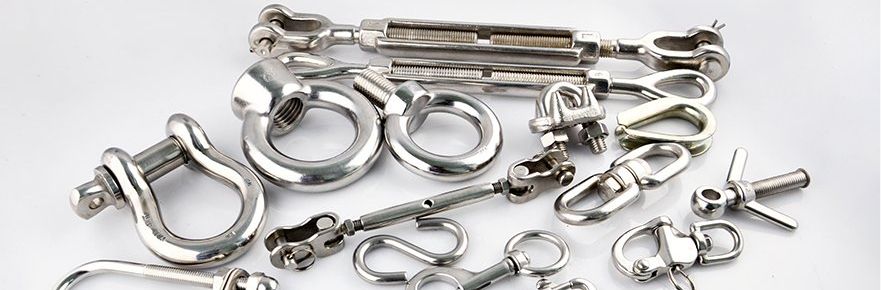

Rigging hardware is the equipment that attaches rigging to loads and combines it into a system that can safely support heavy objects. It includes turnbuckles, shackles, lifting eye bolts and nuts, yoke and clevis ends, and more.



Importance Of Rigging Hardware

There Are Some Important Aspects You Should Definitely Know About The Use Of This Type Of Hardware. And It Is Important For These Connections To Be Durable, Removable, And Safe In Carrying Heavy Loads. All Types Of Industrialization Do Not Add Weight On Materials But Rather Throw Material From A Distance Where Several Thousand Pounds Load Can Be Put Above Your Head Or Under The Machine You Carry Without Any Problems. They Have Integrated Handrails, Safety Guards, Etc Or A Safety Guard Rail.





The Main Characteristics Of Rigging Hardware Are

- They Must Be Firmly Built With Adequate Protection Against Sunlight And Inclement Weather; They Cannot Be Brittle

- The Base Is Attached To The Stakes (Loads) In Such A Way That Is Undesirable Raising One Place The Other, So There Can Not Raise On Some Part Of The Body Only One Part Of It Under Stress, Because When There Is Tension At Last With A Load Or An Uneven Pull On Climbing Ladders And As Well For Bags Carrying Up Vertically.

- If A Heavy Item Such As Sacks Is Transported Through The Floor, Then Rigging Placed Above This Point Can Prevent Them From Being Damaged By Falling Objects (For Example Stairs ) In Case They Rattle To Fall Over Due To Impact Forces That Could Occur During Transport.

- High Load Lifting Power Is The Main High Lighting Feature Of Any Rigging Hardware Because They Are Designed For Ships And Industrial Usage Only.

-Many Industrial Companies Offer Kits That Can Be Used To Secure Loads In Projects. The Majority Are Intended For A Specific Task But Home-Users Find Them Useful And Convenient Because They Are Made From The Finest Quality And Have High Lifting And Pulling Strength.





What's the Difference Between Lifting and Rigging Hardware?

The terms "lifting hardware" and "rigging hardware" are often used interchangeably, but, whereas lifting hardware can be referred to as rigging, not all rigging can be used for lifting. Provided everyone is clear about the equipment under discussion, it's not important what you call it; the terminology is used differently across industries and manufacturers. However, it can be useful to use precise terms.

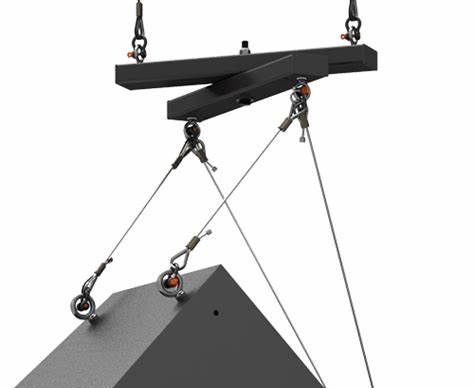

Rigging hardware refers specifically to equipment used with rigging, that is, with the ropes, cables, and chains used to lift and suspend objects. Rigging hardware is often used to attach rigging to an object being lifted. For example, to lift a piece of heavy equipment, you might use a crane to provide mechanical power, rigging to lift and suspend the load, and rigging hardware such as eye bolts and nuts to attach the rigging to the equipment.



How is Rigging Hardware Rated?

When selecting rigging hardware, you must ensure that it can support your load's weight. There are obvious safety implications if you choose hardware inadequate to the task. Each piece of hardware, from cranes and chains to shackles and slings, should be selected to minimize the risk of failure. Rigging hardware is typically rated with a working load limit (WLL) or rated capacity (RC), which may also be expressed as safe working load (SWL) or normal rated load (NRL) figures. However, SWL and NRL have been largely superseded by the less ambiguous working load limit. Manufacturers design and build equipment to support a specific WLL. Each piece of equipment's maximum working load should be clearly displayed in product catalogs. The WLL is a calculated value that accounts for the hardware's minimum breaking load and a safety factor. Minimum breaking load (MBL) is the load under which hardware can be expected to break, deform, or substantially weaken. The calculation for determining WLL is: WLL = MBL/SF If the designed MBL of an eye bolt is 1000 lbs and the safety factor is 4, the working load limit is 250 lbs. For lifting equipment, the safety factor is usually between 4 and 6, although it can be higher or lower depending on the component and circumstances. When using rigging hardware for overhead lifting, be sure not to exceed the WLL. Rigging Lifting Angles It should be noted that the WLL is calculated for a specific range of conditions and usage. For example, a lifting eye bolt's rated capacity is determined for a straight lift where the force is applied at a 0° angle to the bolt's shaft. If the lifting force is applied at a greater angle, the rated capacity is significantly lower. The rated capacity also assumes the component is installed according to the manufacturer's guidelines and used within a specified temperature range — between 30°F and 275°F
