What is a Turnbuckle?

A turnbuckle, sometimes referred to as a bottle screw or stretching screw, is a device for adjusting the tension or length of ropes, cables, tie rods, and other tensioning systems.

It typically consists of a central frame or body with internal threads, and two threaded end fittings (one right-hand and one left-hand) that screw into either end. By rotating the central body, the end fittings move in or out simultaneously, effectively shortening or lengthening the assembly and adjusting the tension.

The Mechanics of a Turnbuckle

The brilliance of a turnbuckle lies in its simplicity and efficiency. The opposing threads ensure that a single rotation of the body results in a change in length equal to the sum of the movement of both end fittings. This allows for quick and precise adjustments.

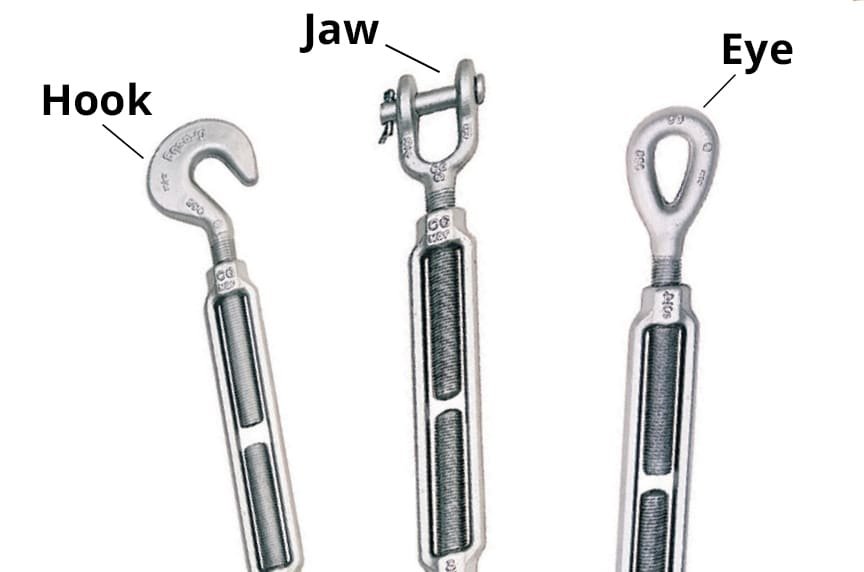

Common end fittings include:

- Jaw ends: For attachment to eye bolts or other components with a clevis pin.

- Eye ends: For direct connection to a bolt or a shackle.

- Hook ends: For hooking onto chains, cables, or other suitable anchor points.

- Stud ends: For direct threading into a tapped hole or nut.

Diverse Applications Across Industries

Turnbuckles are incredibly versatile and find applications in numerous sectors:

- Marine and Rigging: Essential for tensioning stays, shrouds, and other rigging on sailboats and ships.

- Construction and Structural: Used in guy wires for stabilizing towers, masts, and temporary structures like scaffolding.

- Aerospace: Critical for adjusting control surfaces and tensioning cables in aircraft.

- Automotive: Found in suspension systems, particularly in racing vehicles for precise alignment.

- Entertainment: Used extensively in stage rigging to suspend lighting, sound equipment, and scenery.

- Agriculture: For tensioning fence wires and guy lines on farm equipment.

Materials, Grades, and Safety

Turnbuckles are manufactured from various materials to suit different environments and load requirements:

- Carbon Steel: The most common, offering good strength and affordability. Often galvanized for corrosion resistance.

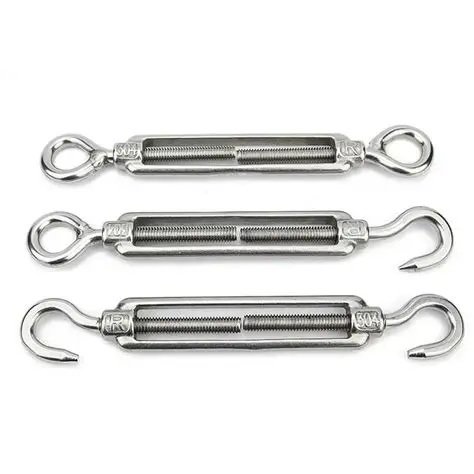

- Stainless Steel: Preferred for its excellent corrosion resistance, ideal for marine, coastal, or hygienic environments.

- Alloy Steel: Used for high-strength applications where weight is a consideration.

It's crucial to select a turnbuckle with the appropriate Working Load Limit (WLL) for the application. Never exceed the rated capacity, as this can lead to failure and serious injury. Always inspect turnbuckles regularly for signs of wear, damage, or corrosion before use.
