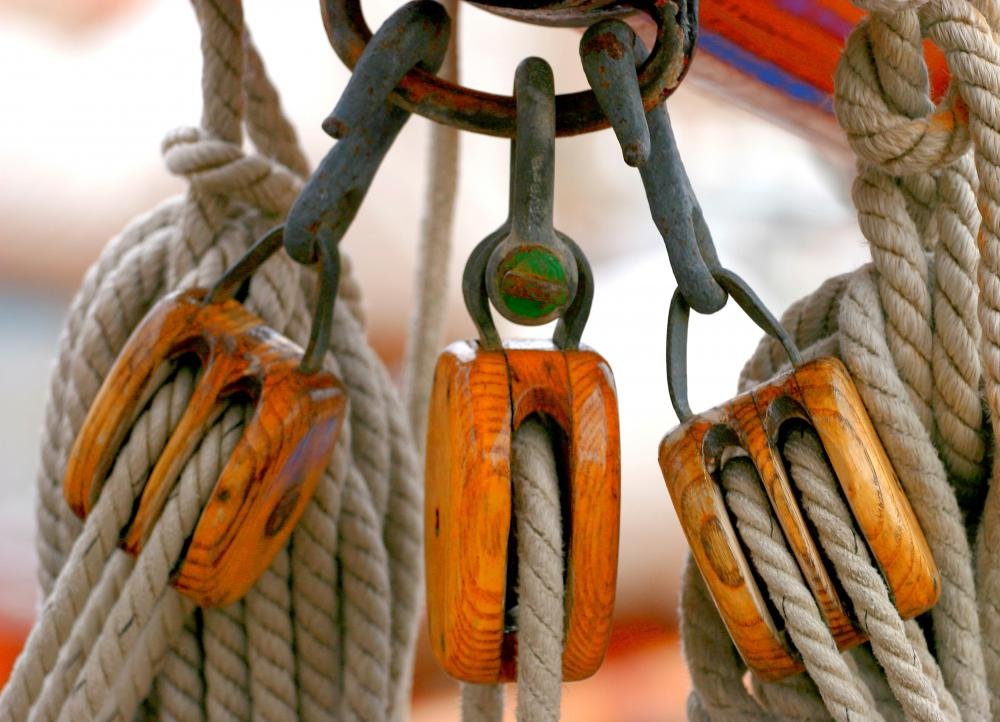

I. Hoisting Block: More Than Just a "Pulley", But a Multifunctional Lifting Tool

Many people's understanding of hoisting blocks remains at the level of "simple pulleys", but in reality, they have long evolved into professional equipment integrating multiple functions, covering full-scenario needs from light handling to heavy lifting.

1. Core Functions: Beyond "Lifting" and "Moving"

The functions of hoisting blocks go far beyond simple heavy object lifting, forming a complete operational solution:

- Vertical Hoisting: The most basic core function. From hardware accessories in warehouses to concrete blocks at construction sites, it can achieve stable lifting, making it an essential function for high-rise construction and equipment installation;

- Horizontal Movement: Cooperating with tracks or fixed brackets, it can precisely move heavy objects horizontally, such as equipment transfer in factory production lines and cargo sorting at ports, greatly improving handling efficiency;

- Inclined Hoisting and Multi-point Synchronization: In special scenarios such as bridge construction and ship maintenance, it can adjust angles to achieve inclined lifting, while the multi-point synchronization function ensures the balance and stability of heavy loads such as wind turbine blades and large prefabricated components;

- Emergency Rescue and Precision Control: Modern hoisting blocks are equipped with electric or hydraulic drive systems, which can quickly lift trapped objects in accident rescues and provide millimetric positioning accuracy for precision instrument installation.

2. Type Classification: Choosing the Right Model is the Key to Efficient Operation

According to operational needs, hoisting blocks are accurately classified to cover different scenarios, with core types divided into three categories:

- By Number of Pulleys: Single-sheave (rated load 0.5-10t) is suitable for light-duty operations, such as laboratory equipment hoisting; multi-sheave (up to 320t) is the main force in heavy engineering, such as 8-10 sheave blocks commonly used for 100t-level container hoisting at ports;

- By Connection Form: Hook-type facilitates quick hooking operations, suitable for mobile construction sites; eye-type has stronger stability, mostly used in long-term fixed production lines or port equipment;

- By Special Purposes: Cable track blocks are specially designed for power supply of mobile equipment, ensuring synchronous movement of cables in gantry cranes and automated production lines to avoid wear; double-layer blocks are adapted for crane mobile power supply, with buffer bumpers at both ends to enhance operational safety.

3. Key Parameters: "Hard Indicators" for Model Selection

When selecting a model, core parameters must be closely monitored to avoid potential safety hazards due to improper matching. According to the JB/T 9007-2018 standard, the rated lifting capacity of hoisting blocks ranges from 0.32t to 1000t, with key focuses on:

- Rated Load: Must be greater than the actual total lifting weight (including heavy objects and rigging weight). For example, a 50t-class block should be selected for 23t equipment hoisting to reserve sufficient safety margin;

- Sheave Groove and Steel Wire Rope Matching: The diameter of the steel wire rope must match the sheave groove diameter. For example, a 10t-class block is suitable for a 23mm diameter steel wire rope to prevent rope jumping or excessive wear;

- Test Load: Regular products must have a test load of 1.6 times the rated load. For example, the test load of a 5t block is 80KN, which is a core indicator to ensure safety.

II. Safe Operation: 3 Core Principles to Eliminate Accident Hazards

Most accidents involving hoisting blocks result from irregular operations. Remember the following principles to turn a "labor-saving tool" into a "safe tool":

1. Strictly Prohibit Overloading and Irregular Operations

Overloading is the primary cause of rope breakage. Each block has a clear rated load, and exceeding the load-bearing capacity will directly lead to component failure. At the same time, oblique pulling and hoisting are prohibited. This operation will cause uneven stress on the steel wire rope, accelerating wear or even breakage. The correct approach is to keep the center of the hook aligned vertically with the center of gravity of the heavy object.

2. Must-do "Inspection Checklist" Before Lifting

Before operation, confirm one by one: whether the pulley rotates flexibly, whether the sheave groove has cracks or excessive wear (replace if wear reaches 1/4 of the original size); whether the hook/eye is deformed and fasteners are not loose; whether the steel wire rope has broken wires (replace immediately if the broken wire rate exceeds 5%), and safety protection devices (limiters, overload protectors) are functioning normally.

3. Standardize Operational Procedures

Rope reeving should follow the "straight reeving method (for 3 or fewer sheaves)" or "cross reeving method (for 4-6 sheaves)" to avoid twisting and entanglement; apply force slowly during lifting, and prohibit sudden jerking to generate impact loads; no personnel are allowed to stand within the operation radius, and no one is allowed to stay under heavy objects. For multi-person cooperation, a unified commander should be assigned to ensure synchronous actions.

III. Maintenance: "Key Actions" to Extend Service Life

High-quality hoisting blocks can have a service life of several years, with the core lying in daily maintenance:

- Regular Lubrication: Before and after each use, apply lubricating oil to the axle and bearings to reduce mechanical wear. Especially in dusty industrial environments with large temperature differences, the lubrication frequency should be doubled;

- Daily Inspection and Rust Removal: Clean surface dust and debris after use, and check for sheave groove wear and hook deformation; store in a dry and ventilated place, treat slight rust with professional rust remover, and replace immediately if corrosion is severe;

- Professional Maintenance: Use accessories of the same model when replacing parts. After maintenance, idle load and load tests must be conducted to ensure smooth operation. Unauthorized modification or assembly of parts is prohibited.
