OPERATION NOTE

1. Hoist rings are not used for long-term bearing capacity; it can not swivel for long time.

2. During the lifting process, it is forbidden to swing and sway the sling, and the lifting must be moved at a constant speed and slowly.

3. When the lifting process slips and slides,please stop using it immediately.

4. When the hoist ring uses in the chemical environment, please consult the manufacturer.

5. If it found that hoist ring of corrosion, cracks, abrasion, bending, deformation, or damage, it is prohibited to use Continually.

Installation instruction

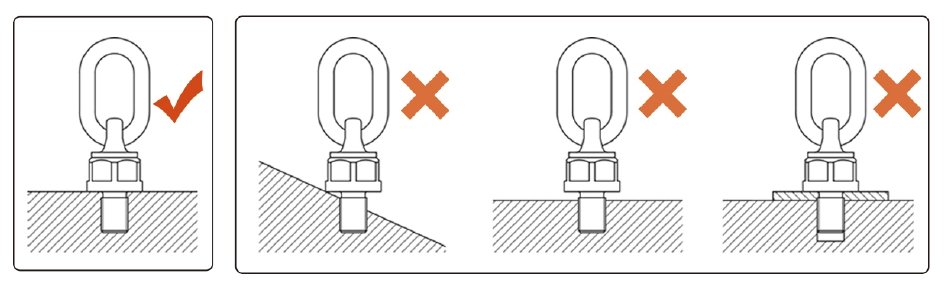

1. The threaded hole of the lifting object must be perpendicular to the surface of the object,and the thread size matches the swivel ring.

2. The bottom of the swivel ring must be tightly attached to the lifting object,to prevent gaps from causing large bending moments and to prevent from reducing the life of the hoist ring.

3. Prohibited to put gasket or other fittings between the hoist ring and the lifting object,or remodel the hoist ring.

4. The hoist ring must be mounted on a hard metal surface such as steel or iron, It is forbidden to be installed on soft materials such as wood boards and cement.

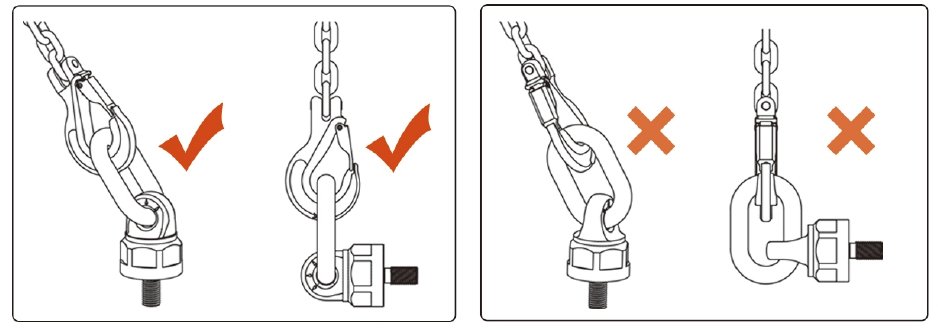

5. Chosed the right lifting tool to match with hoist ring, and ensure that the direction of force is appropriate.

6. The hoist ring must be mounted at the center of gravity or symmetrically mounted around the center of gravity.

7. After the hoist ring is installed,when the hoist ring is forced,the hoist ring cannot interfere or obstruct the suspended object.
