Defining Wire Rope Thimbles

Wire rope thimbles are U-shaped, grooved fittings made of metal or plastic, designed to reinforce the looped ends (or “eyes”) of wire ropes, cables, and slings. Inserted into the loop, they provide a sturdy surface that maintains the rope’s shape, preventing wear, kinking, or fraying at stress points. For example, in a construction site crane operation, a thimble ensures the wire rope loop remains intact under tons of weight, enhancing both durability and safety.

How Thimbles Work

Thimbles act as a buffer between the wire rope and rigging hardware like shackles or hooks. By distributing the load evenly around the loop, they minimize friction and protect the rope from sharp bends or pinching. This reinforcement is critical in high-load scenarios, where unprotected loops could weaken and fail, posing serious risks.

Common Materials Explained

Thimbles come in various materials, each suited to specific needs:

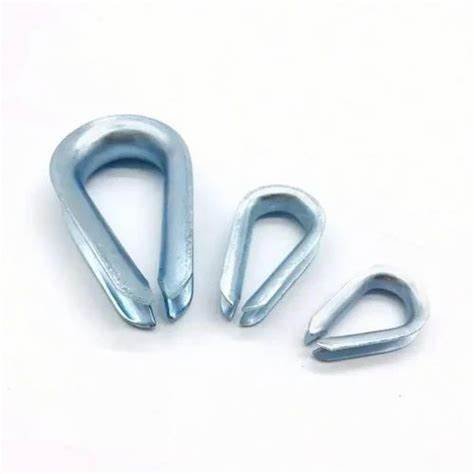

· Galvanized Steel: Corrosion-resistant and cost-effective, ideal for general rigging tasks.

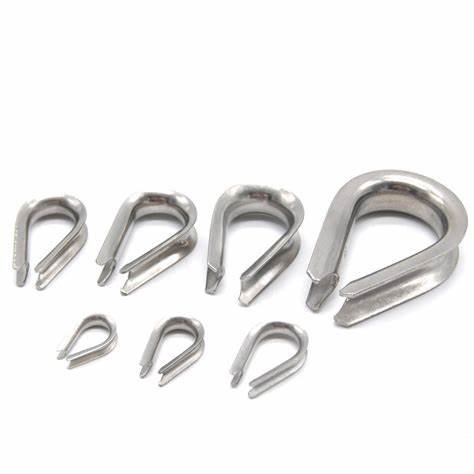

· Stainless Steel: Perfect for harsh environments like marine settings, resisting moisture and saltwater (ASTM A586 standards apply).

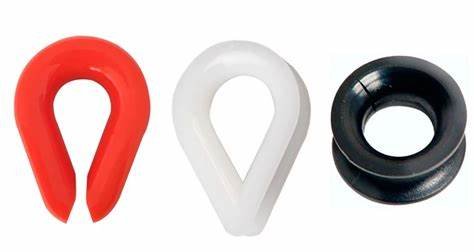

· Plastic/Nylon: Lightweight and corrosion-resistant, best for low-stress uses like small boating setups.

Choosing the right material depends on load demands and exposure conditions. For instance, stainless steel thimbles are a go-to for offshore oil rigs, as confirmed by marine engineers we’ve consulted.

Types of Wire Rope Thimbles

· Standard/DIN Thimbles: Conforming to German industrial standards (DIN), these suit moderate loads.

· Heavy-Duty Thimbles: Thicker and tougher, built for intense industrial lifting.

· Light-Duty Thimbles: Slim and lightweight, used in non-industrial tasks.

· Solid Thimbles: Fully solid for extreme durability under constant heavy loads.

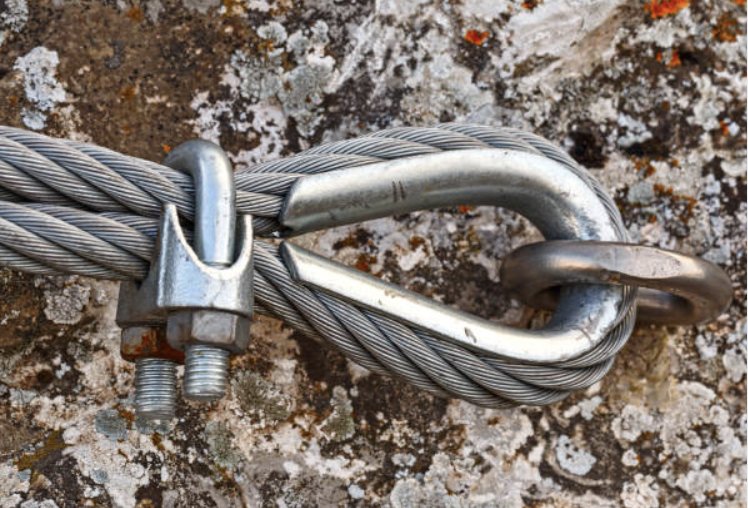

How to Install Wire Rope Thimbles

1. Prepare the Rope: Cut the wire to length with a clean end. Tape it to prevent fraying.

2. Form the Loop: Bend the rope into a loop, ensuring it fits the thimble snugly.

3. Insert the Thimble: Slide it into the loop, adjusting for a tight fit.

4. Secure It: Use a ferrule or clamp—two clamps for high loads—and tighten bolts carefully.

5. Inspect: Check for alignment, ensuring no slack or pinching.

Common Installation Mistakes

· Wrong Size: A mismatched thimble damages both rope and fitting. Match diameters precisely.

· Loose Clamps: Insufficient clamping risks slippage—follow OSHA 1926.251 guidelines.

· Over-Tightening: Crushing strands weakens the rope. Use recommended torque levels.

Maintenance Best Practices

· Regular Checks: Inspect for wear or corrosion before each use, especially in safety-critical tasks.

· Lubricate: Apply a compatible lubricant to reduce friction, avoiding buildup on the thimble.

· Corrosion Watch: In marine settings, check for rust—stainless steel is often recommended.

· Replace Promptly: Swap out bent or cracked thimbles to avoid rope failure.

Applications Across Industries

Wire rope thimbles shine in diverse fields, enhancing safety and performance.

1. Construction

· Hoisting: Thimbles secure crane ropes for lifting beams, and can be used with pulley blocks.

· Suspension: Used in bridge cable systems for stability, and can be used with Turnbuckles.

2. Marine

· Mooring: Reinforced loops secure boats to docks.

· Fishing: Thimbles protect nets and winches from saltwater wear.

3. Mining

· Hauling: Thimbles support ropes in ore transport systems.

· Safety: Reinforce netting in shafts.

4. Transportation

· Cargo Securing: Thimbles ensure tight lashing on trucks.
