1. Understand the Turnbuckle Parts

A turnbuckle has three main components:

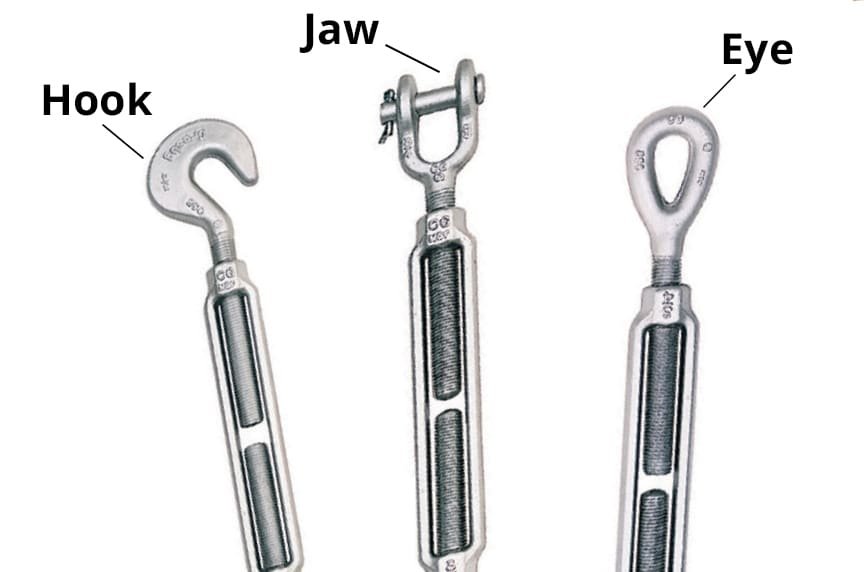

• Two end fittings (hooks, eyes, studs, or shackles) – these connect to the objects you want to tension (e.g., cables, ropes, or structural parts).




• A central barrel (or body) – a threaded cylinder that connects the two end fittings. Turning the barrel adjusts the length, thus changing tension.

2. Prepare the Connection

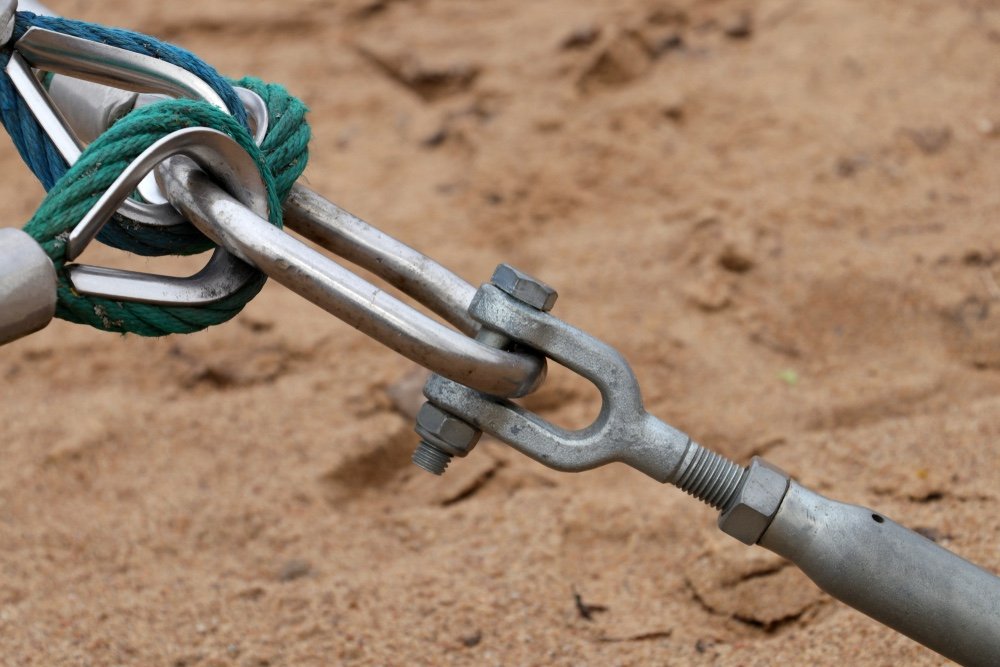

• Attach the end fittings to the two objects you need to tension. For example:




• Hook one end to a fixed anchor (e.g., a bolt on a wall).

• Hook the other end to the cable/rope you need to tighten (e.g., a tent rope, fence wire, or steel cable).

• Ensure the connections are secure (e.g., hooks are fully engaged, shackles are pinned, eyes are bolted).

Pro Tip: Start with the turnbuckle at approximately mid-length to allow for both tightening and loosening adjustments later.

3. Adjust Tension

• To increase tension (shorten the turnbuckle): Turn the central barrel clockwise (when viewed from the end). This draws the two end fittings closer together, tightening the cable/rope.

• To decrease tension (lengthen the turnbuckle): Turn the central barrel counterclockwise. This pushes the end fittings apart, loosening the cable/rope.

Important: Make small adjustments (quarter turns) and check tension frequently. Over-tightening can damage the turnbuckle or connected components.

Tip: Use a wrench on the barrel's flat sides for better grip, especially if it's tight.

4. Secure the Turnbuckle

Once the desired tension is achieved, lock the turnbuckle to prevent accidental loosening (critical for safety, e.g., in structural or load-bearing applications):

• Use lock nuts (if included) on the end fittings, tightening them against the barrel.

• Wrap wire through holes in the barrel and end fittings, twisting it to secure.

• For heavy loads, use cotter pins or specialized locking devices.

5. Safety Notes

• Never exceed the turnbuckle's load rating (check manufacturer specs) – over-tightening can cause it to fail.

• Inspect for damage (e.g., bent hooks, stripped threads) before use.

• Ensure end fittings match the application (e.g., use shackles instead of hooks for heavy loads to avoid accidental disengagement).

• Check thread engagement: Ensure at least 6-8 threads are engaged on each end fitting for safe operation.

6. Common Mistakes to Avoid

⚠️ Warning Signs:

• Cross-threading: Always start threads by hand to avoid damaging the threads

• Uneven adjustment: Both end fittings should have similar thread engagement lengths

• Ignoring load direction: Turnbuckles are designed for straight-line tension only, not side loads

• Forgetting to secure: Always lock the turnbuckle after adjustment to prevent loosening from vibration

• Using damaged components: Replace turnbuckles with bent hooks, stripped threads, or stress cracks immediately

7. Practical Tips

• Proper sizing: Choose a turnbuckle rated for at least 3-5 times your expected load

• Regular inspection: Check turnbuckles monthly in critical applications for signs of wear or loosening

• Environmental considerations: Use stainless steel or galvanized turnbuckles in marine or outdoor environments

• Thread compatibility: Ensure threads match (standard vs. metric) before installation

Turnbuckles, with their function of adjusting tension and length, are widely used in various fields. Common application scenarios include:

1. Construction and Structural Engineering

• Used for tensioning and securing steel structures (such as trusses and supports), adjusting the tension between components to ensure structural stability.

• In the installation of curtain walls and billboards, they fix supporting ropes or steel cables, and the tension can be finely adjusted through turnbuckles.

2. Marine and Shipping

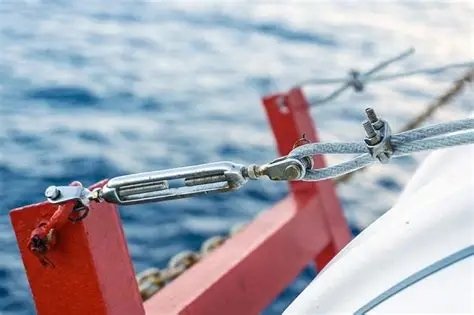

• Connect components such as hulls, masts, and bollards, adjust the tension of anchor chains and rigging to adapt to changes in force during navigation.

• Secure on-board equipment (such as lifeboats and cargo hatches) to ensure stability during rough seas and prevent damage from shifting loads.

• Essential for sailboat rigging maintenance and tensioning of stays and shrouds.




3. Transportation

• In the construction of railway or highway bridges and tracks, they are used to adjust the tension of fixed guardrails, cables, or supporting structures.

• Tighten cargo straps during truck and trailer transportation to prevent cargo displacement.

• Adjust suspension cables on suspension bridges and cable-stayed bridges.

4. Outdoor and Agriculture

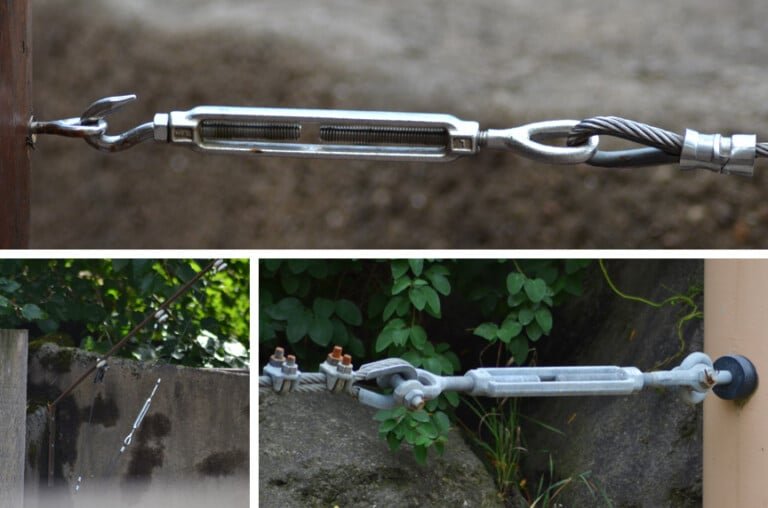

• Tighten and fix ropes when setting up tents, awnings, and fences to resist wind and rain.

• In agriculture, they are used to fix greenhouse frames and fence wires, adjusting the tightness to adapt to crop growth or environmental changes.

• Secure vineyard trellises and orchard support systems.




5. Lifting and Hoisting

• Used with steel cables and chains to fine-tune the length and tension of slings when hoisting heavy objects, ensuring balanced force.

• Critical components in crane rigging and material handling systems.

6. Sports and Entertainment Facilities

• Fix the surrounding nets of sports fields and the awnings of stands, adjusting the tension of supporting cables.

• In stage construction, they fix the ropes or steel cables of lighting frames and background frames.

• Secure performance rigging and aerial equipment in theaters and concert venues.

Remember: Regular maintenance and inspection are crucial for safe operation, especially in load-bearing applications. When in doubt, consult with a structural engineer or rigging professional for critical installations.
