Introduction

A wire rope thimble is a critical protective component in wire rope rigging systems, shaped like a teardrop or heart-shaped metal loop. When a wire rope needs to form an eye (loop connection point), the thimble is inserted inside the eye to prevent the wire rope from being damaged or breaking due to excessive bending under load.

Without thimble protection, the wire rope eye would experience severe stress concentration at the bend point when bearing heavy loads, leading to rapid wire fatigue and breakage - similar to how repeatedly bending a metal wire will eventually cause it to snap. The thimble provides a smooth, rigid bearing surface for the wire rope, distributing concentrated stress evenly. This can extend the wire rope's service life by 5-10 times while significantly improving the safety factor. In lifting, hoisting, and marine engineering applications, proper use of thimbles is a fundamental requirement for operational safety.

1. Classification by Material

- Carbon Steel Thimbles: The most widely used type, with high strength and low cost. Suitable for general industrial lifting, transportation, and construction scenarios (e.g., common carbon steel grades like Q235).

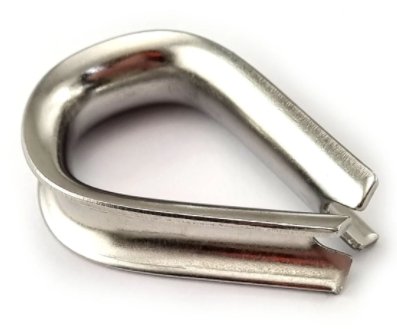

- Stainless Steel Thimbles: Made of 304, 316, etc., with excellent corrosion resistance. Used in humid, marine, chemical, or food processing environments (to avoid rust affecting performance).

- Galvanized Thimbles: Carbon steel thimbles with a galvanized coating (hot-dip or electro-galvanized). Enhance rust resistance for outdoor or semi-humid scenarios (e.g., outdoor power transmission, agricultural machinery).

2. Classification by Application Scenario

- Standard Industrial Thimbles: For general lifting, hoisting, and rigging (the most common type, matching standard wire rope diameters).

- Marine Thimbles: Usually stainless steel or hot-dip galvanized, designed to resist seawater corrosion. Used in ship mooring, offshore operations, or marine engineering.

- Electrical Thimbles: Insulated or non-magnetic (e.g., made of non-magnetic stainless steel), used in power grid construction (to avoid interfering with electrical signals or causing magnetic induction).

3. Classification by Structural Design

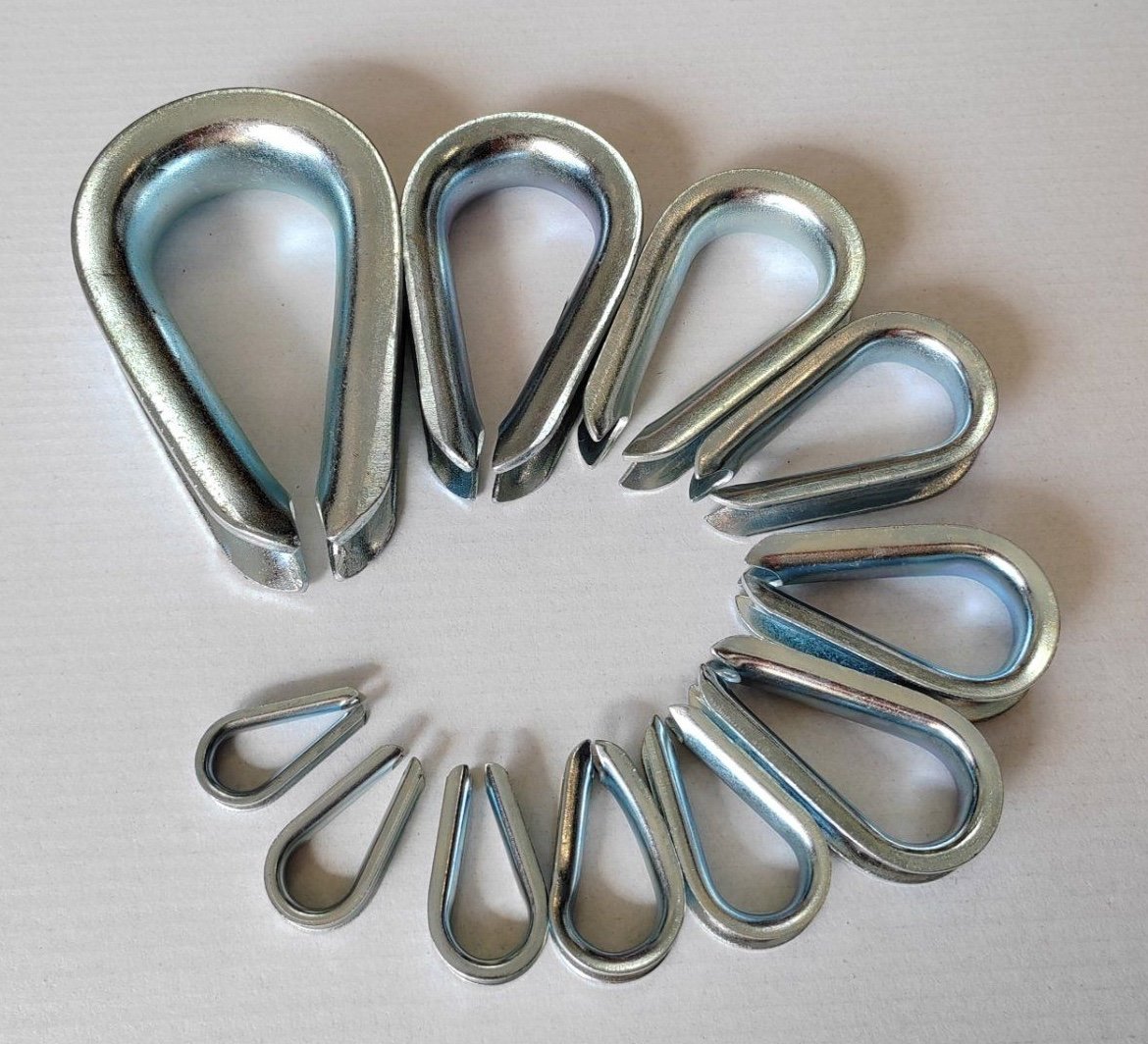

- Closed Thimbles (Standard Type): The most common structure, with a full circular groove to fully wrap the wire rope loop. Suitable for most static and dynamic load scenarios.

- Open Thimbles: With a small opening on one side, allowing easy insertion of pre-formed wire rope loops. Used in scenarios where quick installation is needed (but load-bearing capacity is slightly lower than closed types).

- Heavy-Duty Thimbles: Thickened wall, larger groove radius, and higher load rating. Used for heavy lifting (e.g., port cranes, mining machinery) where wire ropes bear large tension.

How to Use a Wire Rope Thimble

1. Preparation

- Confirm the thimble specification: Select a thimble that fully matches the diameter of the wire rope (the groove of the thimble should just accommodate the wire rope; a too-loose or too-tight fit will affect safety).

- Inspect the condition of components: Ensure the thimble has no cracks, deformation, or rust, and the wire rope has no broken wires or excessive wear. Meanwhile, prepare matching wire rope clips (cable clamps) or crimping tools.

2. Create a Wire Rope Loop (Eye)

- Bend one end of the wire rope to form a loop of the required size (the diameter of the eye is usually 6-10 times the diameter of the wire rope to avoid excessive bending).

- Embed the thimble into the groove on the inner side of the eye, ensuring the thimble fits perfectly along the curve of the eye and covers the stress-bearing part of the eye to prevent direct bending of the wire rope.

3. Secure the Eye (Core Step)

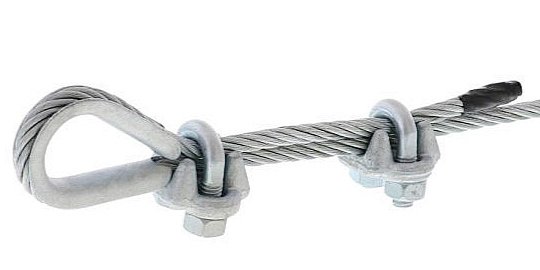

Method 1: Securing with Wire Rope Clips (Cable Clamps) (Common and Convenient Method)

1. Place the "U-bolt" of the cable clamp over the live end (unfixed end) of the wire rope, and press the "pressure plate" onto the dead end (fixed end). Ensure the distance between the cable clamp and the edge of the thimble is approximately 10-15 mm.

• Live End: The short tail end of the wire rope that remains after forming the eye - this unfixed portion does not bear the primary load

• Dead End: The long end of the wire rope that connects directly to the load or anchor point - this is the main load-bearing portion that carries all working loads




2. Determine the number of cable clamps based on the wire rope diameter (e.g., 3-4 clamps are needed for a wire rope with a diameter of 10-20 mm). The spacing between adjacent clamps should be 6-8 times the wire rope diameter, and they should be evenly distributed.

3. Tighten the clamp nuts with a wrench until the wire rope is slightly flattened (the flattening degree should be about 1/3 of the original diameter). Avoid over-loosening (which may cause slipping) or over-tightening (which may damage the wire rope).

Method 2: Crimping Fixation (Suitable for High-Load Scenarios)

- Use a professional wire rope crimping machine to compress the overlapping part of the thimble and the eye through a metal crimping die, forming a permanently fixed joint. This method has higher load-bearing capacity and is suitable for heavy lifting, marine, and similar scenarios.

4. Inspection and Test Use

- After fixation, visually inspect whether the thimble is centered, the cable clamps are installed in the correct direction (the pressure plate must press the dead end), and the nuts are tightened.

- Conduct a no-load or light-load test pull (the load should be approximately 20%-30% of the rated load). Observe whether there is no relative sliding or deformation between the thimble and the wire rope. Only put it into formal use after confirming it is correct.

5. Precautions

- Prohibit "reverse use": If the pressure plate of the cable clamp is mistakenly pressed on the live end, the wire rope may slip under load, leading to safety accidents.

- Avoid overloading: Both the thimble and the wire rope have a rated load. A safety margin should be reserved in actual use (usually not exceeding 80% of the rated load).

- Regular maintenance: After use in humid or corrosive environments, regularly inspect the thimble for rust and the wire rope for wear, and replace damaged components in a timely manner.
