Six Common Steel Wire Rope Fittings and Selection Standards

1. Wire Rope Clip (Cable Clip)

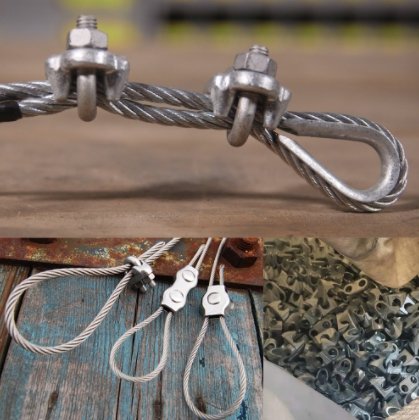

Wire rope clips, used together with U-bolts and saddles, fix the end of a steel wire rope and prevent it from loosening. This fitting is suitable for temporary connections. When selecting a wire rope clip, the size must match the diameter of the steel wire rope. The inner distance of the U-bolt should be 1-3 millimeters larger than the rope diameter—if too small, it cannot fasten tightly, and if too large, the rope will slide. Typically, use no fewer than 3-5 clips, spaced at intervals equal to 6-7 times the rope diameter. Wire rope clips are commonly used in temporary hoisting on construction sites and for fixing outdoor drying racks in non-permanent load-bearing scenarios.

2. Swaged Wire Rope Socket

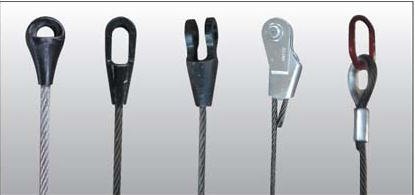

A swaged wire rope socket combines a steel sleeve and steel wire rope into a loop through a swaging process. This creates a fitting with high tensile strength and excellent stability, with almost no loosening. When selecting this type of socket, pay close attention to the compactness of the swaging process. Choose products that have passed tension testing to avoid breakage due to manufacturing defects. Swaged sockets are ideal for long-term load-bearing applications that operate frequently, such as crane sling connections and elevator car suspensions.

3. Wire Rope Thimble (Rope Eye Protector)

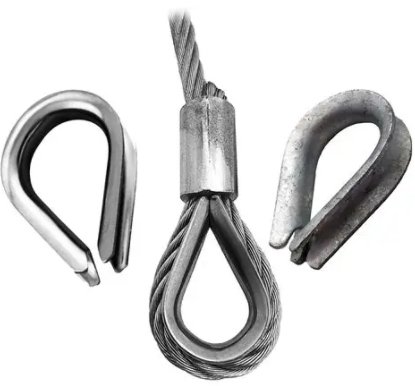

A wire rope thimble guides the bending direction of the steel wire rope and prevents stress concentration caused by excessive bending at the rope end, distributing the load evenly. When choosing a thimble, prioritize hot-dip galvanized carbon steel or stainless steel for better corrosion resistance, particularly suitable for humid and outdoor environments. Thimbles are used in ship mooring, high-altitude electrical work, tower crane lifting, and other applications where rope end protection is critical.

4. Shackle (D-Shackle, Bow Shackle)

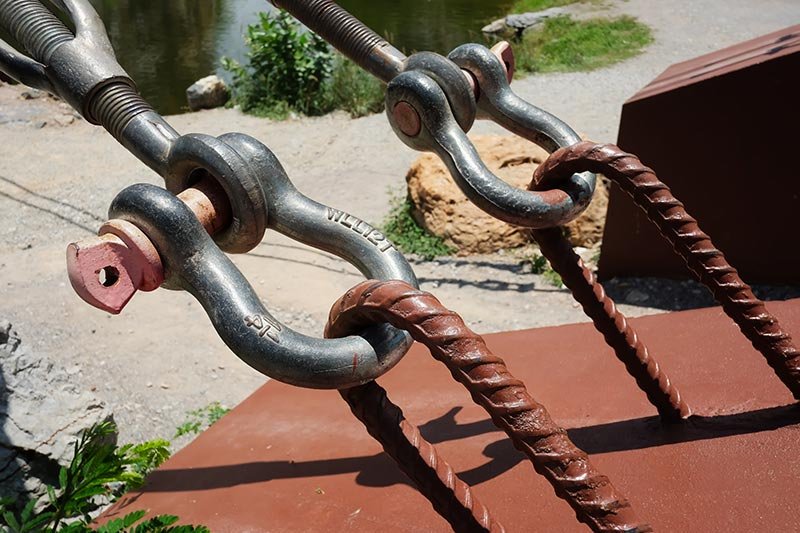

Shackles serve as connection points between steel wire ropes and hooks, blocks, and other components. They come in two types: bow shackles and D-shackles. Bow shackles are better for multi-angle connections, while D-shackles have higher load-bearing capacity. However, only forged shackles should be used—cast or welded shackles are strictly prohibited. Welded shackles tend to break at the welds, and cast shackles lack sufficient strength. Shackles are essential in logistics loading and unloading operations and construction hoisting, as almost all lifting work depends on them.

5. Lifting Hook

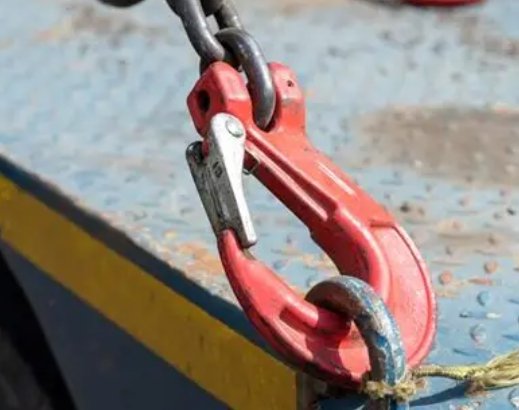

The lifting hook directly suspends heavy objects and serves as the final point of force transmission, making it critical that it maintains high strength and includes an anti-drop safety feature. A good lifting hook should have a smooth surface free of cracks and be equipped with an anti-drop mechanism. The rated load capacity must match the weight of the object being lifted, and overloading is strictly prohibited. Lifting hooks are used in factory handling, port hoisting, crane operations, and all other scenarios requiring the suspension of heavy objects.

6. Pulley Block (Movable Pulley, Fixed Pulley)

A single pulley can change the direction of the steel wire rope's tension, while multiple pulleys arranged together in a pulley system can also provide mechanical advantage and labor-saving effects. When selecting pulleys, determine the number based on the tension requirements of your application. The pulley diameter must match the steel wire rope diameter; if the pulley is too small, it will accelerate rope wear. Pulley systems are used in building installation, ship anchoring, equipment handling, and other operations where adjusting rope direction or reducing physical effort is necessary.

Common Mistakes and Consequences

Mistake 1: Installing the Wire Rope Clip Backwards

The wire rope clip is often installed incorrectly on job sites. The U-bolt must clamp onto the tail end (short end) of the rope, while the saddle should press onto the main rope. If this is reversed, the main rope will be directly squeezed by the U-bolt, and under load, the rope is prone to wire breakage. This is one of the most common errors on construction sites and can lead to sudden failure.

Mistake 2: Applying Lateral Force to Shackles

Shackles are designed to withstand direct vertical pulling force, with the pin and top of the shackle body serving as the primary load points. When shackles experience lateral or shear forces, the shackle body will bend and deform. The danger here is that a deformed shackle may show no obvious external cracks, but its load-bearing capacity has already been significantly reduced and may break at any moment. Proper usage requires ensuring the shackle experiences force in the correct direction.

Mistake 3: Continuing to Use Worn Hooks

Hooks must be replaced once their dangerous cross-section shows wear equal to 10% of the original size, their opening has increased by 15%, or any cracks appear. These hooks should be discarded immediately. Some construction teams try to repair worn hooks by welding to save money, but this practice is dangerous. Welding changes the material properties of the hook, making it more brittle and prone to sudden failure.

The safety of steel wire rope fittings depends on two key factors: first, selecting properly specified and authentic fittings; and second, using them correctly and conducting regular inspections. Even if a fitting has good quality, incorrect installation and improper usage can lead to serious accidents. Understanding these principles is essential for anyone working with heavy lifting equipment.
