I. Basic Understanding of Shackles

1. Classification and Application Scenarios

- By Structure:

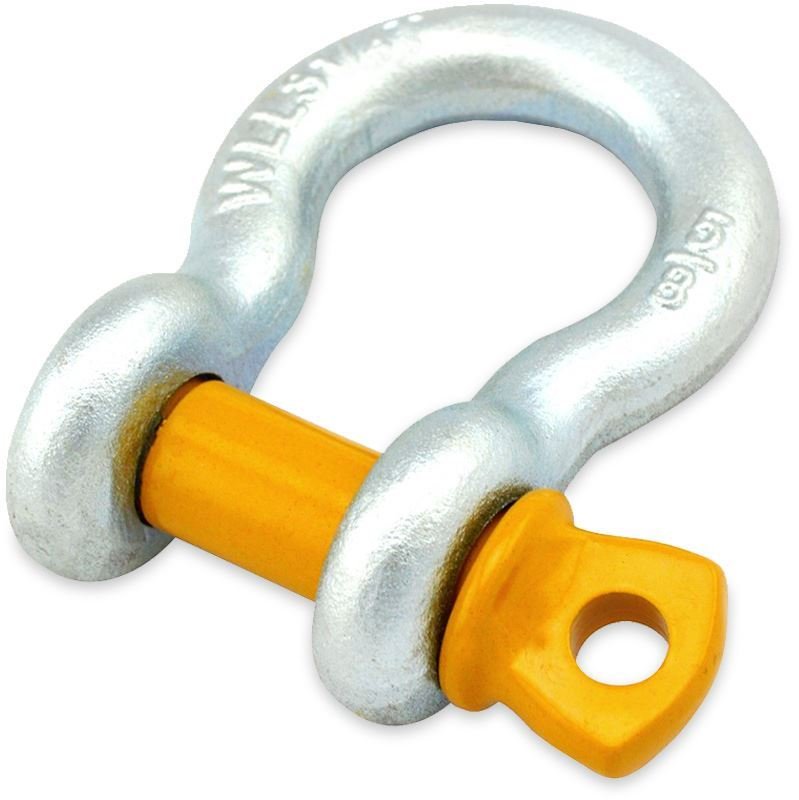

- Bow Shackle: Can withstand multi-directional loads, suitable for oblique pulling and binding scenarios.

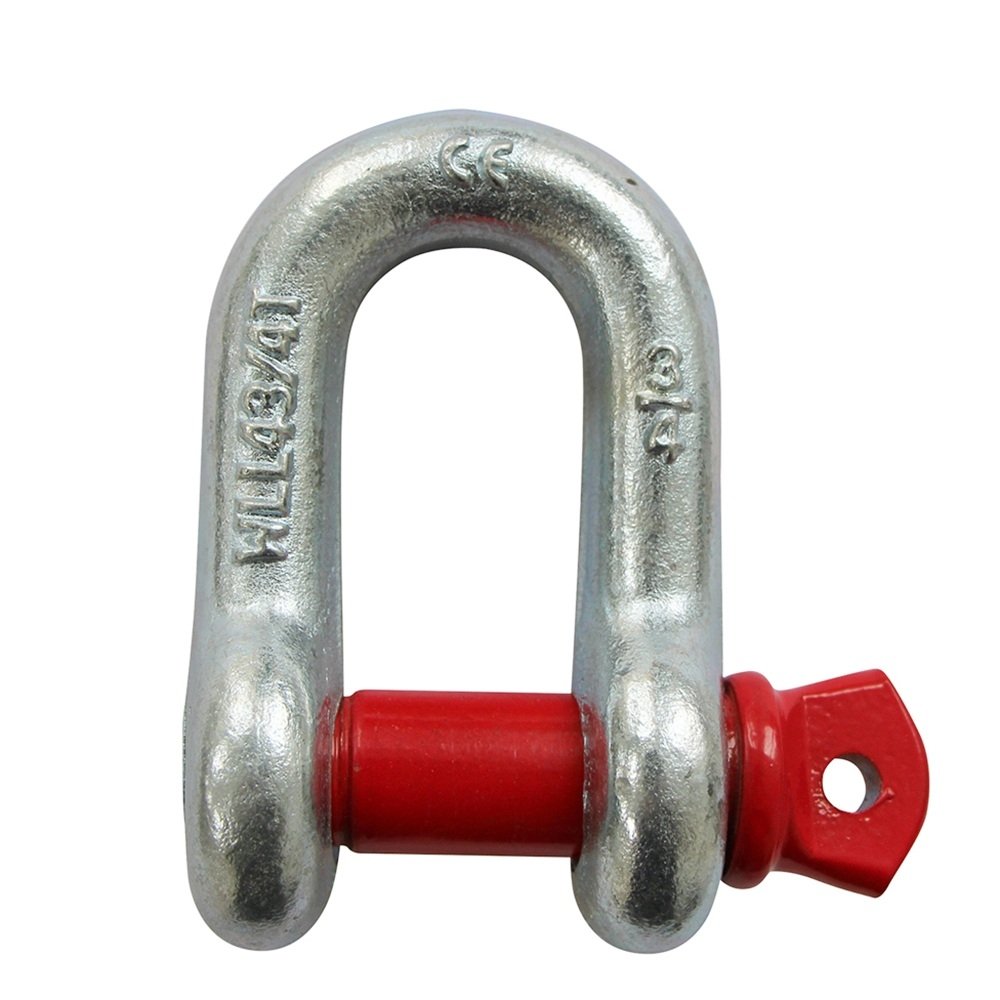

- D-Shackle: Only bears axial loads, applicable for linear hoisting and fixed connections.

- By Material:

- Alloy Steel Shackle (high strength, working load limit 1-500T, used in heavy industry and port hoisting).

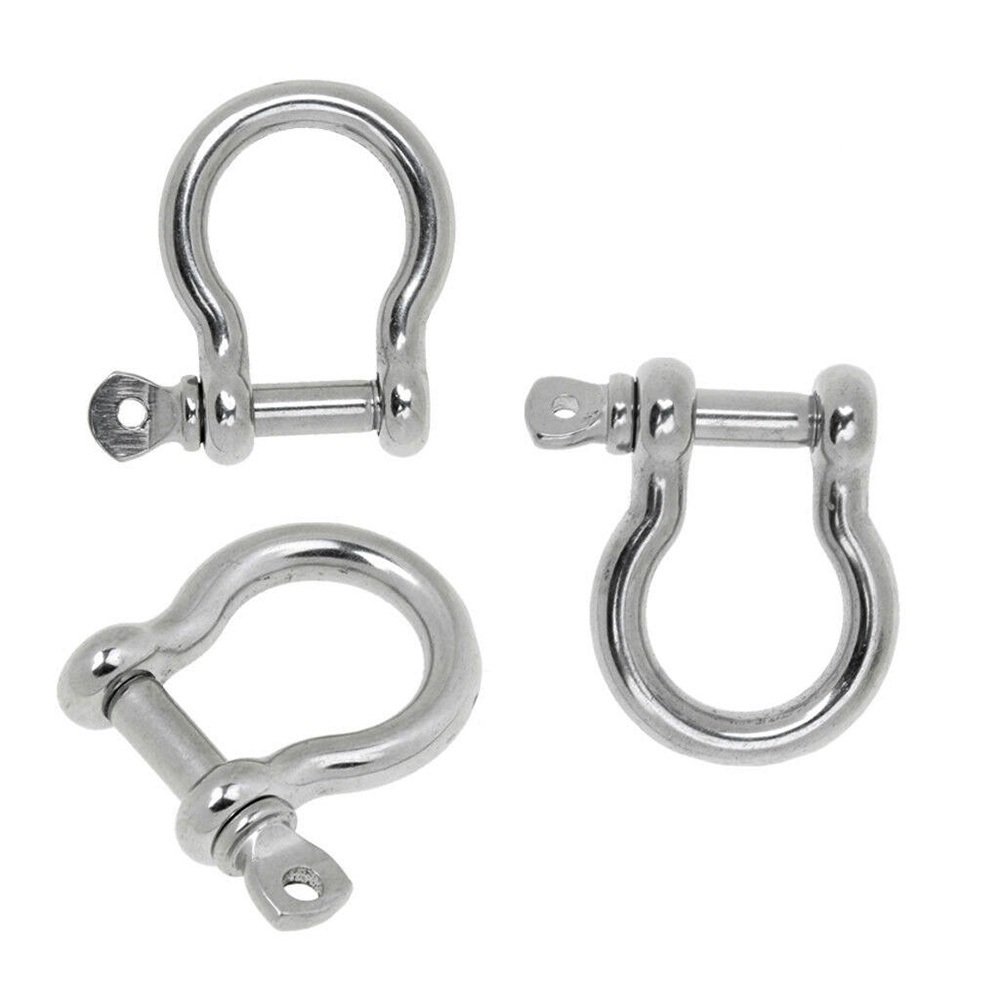

- Stainless Steel Shackle (304/316 material, corrosion-resistant, suitable for marine, chemical, and food processing industries).

- Carbon Steel Shackle (cost-effective, used in light-load scenarios at room temperature without corrosion).

- By Locking Method:

- Cotter Pin Type (traditionally reliable, requiring cotter pins to fix the pin).

- Spring Clip Type (quick installation, locked by spring force, suitable for frequent disassembly).

- Threaded Type (pin with threads, anti-loosening after tightening, suitable for vibration conditions).

2. Interpretation of Key Parameters

- Working Load Limit (WLL): The maximum allowable load for the shackle during normal operation, which must be marked on the body (e.g., "WLL 5T"). Overloading is strictly prohibited.

- Safety Factor: Industrial-grade shackles have a safety factor ≥4, and those for heavy hoisting ≥5. Breaking Load = WLL × Safety Factor.

- Dimensional Parameters: Body opening size, pin diameter, and body length must match the dimensions of supporting components such as hooks, steel wire ropes, and chains to avoid loose connections.

II. Detailed Operation Procedures

1. Pre-Use Preparation

- Load Calculation: Determine the shackle's WLL based on the load weight, hoisting method (single-point/multi-point hoisting), and dynamic load factor (1.2-1.5 for crane start/braking), with a safety margin ≥20%.

- Working Condition Evaluation: Check the operating temperature (conventional shackles: -20℃~+40℃; high-temperature-resistant alloy shackles for high-temperature conditions), presence of corrosive media (anti-corrosion materials for acid, alkali, or seawater), and potential obstacles or personnel interference.

- Component Matching: Ensure the WLL of supporting components (hooks, steel wire ropes) is not lower than that of the shackle. Avoid contact between sharp edges and the shackle body to prevent local stress concentration.

2. Installation Steps

1. Clean the shackle body and pin to remove oil, rust, and debris, ensuring smooth thread connection and intact locking components.

2. Select the appropriate shackle based on hoisting direction: D-Shackle for linear hoisting, Bow Shackle for oblique pulling or multi-angle hoisting (avoid lateral loads on D-Shackles).

3. Insert the pin fully through both holes of the body without deviation or jamming. Install locking components properly: bend the cotter pin after insertion, ensure the spring clip fully engages the slot, and tighten threaded pins with lock nuts.

4. For load connection, ensure a flat contact surface between the shackle and the load to prevent cutting. In multi-point hoisting, distribute loads evenly with angles ≤60° between shackles to avoid overloading.

3. Operation Control During Hoisting/Work

- Initial Lifting: Lift the load slowly, pause when it is 10-20cm off the ground, and check for deformation, abnormal noise, secure locking, and load balance before continuing.

- Operation Process: Maintain axial load transmission, avoid sudden starts, stops, or direction changes (preventing impact loads). Prohibit personnel from staying under the load or in the stress area; use guide ropes for position adjustment.

- Multi-Shackle Coordination: Use shackles with the same WLL in multi-point hoisting, ensuring equal distances from each shackle to the load's center of gravity. For series connection, avoid interference between pins and adjacent bodies.

4. Dismantling and Storage Procedures

- Pre-Dismantling: Fully unload the load, confirm stable placement, then remove locking components and extract the pin. Do not force disassembly under load.

- Cleaning and Maintenance: Remove oil and dust with diesel or cleaning agents, grind rust on carbon steel shackles and apply anti-rust oil, or use stainless steel protectants. Replace damaged locking components or worn threads.

- Storage Requirements: Store in a dry, ventilated warehouse without corrosive gases, classified by type. Hang or lay flat to prevent pin deformation, and keep locking components installed to avoid loss.

III. Advanced Safety Precautions

1. Prohibited Operations

- Strictly prohibit overloading: Even short-term overloading may cause permanent deformation or fatigue damage.

- No modification or substitution: Do not weld, cut, or heat the shackle structure. Do not use bolts/reinforcement bars instead of alloy pins, or weld the shackle to other components.

- Avoid abnormal loads: Prevent lateral pulling, twisting (D-Shackles are prone to fracture under lateral loads), or using the pin for transverse loads. Do not expand the opening by inserting foreign objects.

- Harsh Environment Restrictions: For temperatures >40℃, reduce the WLL of carbon steel shackles by 10% per 100℃ increase. For acid, alkali, or seawater environments, use 316 stainless steel or anti-corrosion coated shackles.

2. Regular Inspection and Scrap Standards

(1) Inspection Cycles

- Daily: Pre-use inspection (appearance, locking, connections).

- Regular: Monthly for light loads, biweekly for heavy loads or harsh environments (with inspection records).

- Special: Immediate inspection after impact, collision, or corrosion; resume use only if intact.

(2) Inspection Items and Criteria

- Body: Check for cracks, deformation, and wear. Scrap if there are visible cracks, the opening size increases by more than 5% of the nominal size, or the thickness wear exceeds 10% of the nominal size.

- Pin: Check for deformation, wear, and thread damage. Scrap if there is bending, the diameter wear exceeds 10% of the nominal size, or there are stripped threads or inability to tighten/disassemble.

- Locking Components: Check for elasticity and integrity. Scrap if cotter pins are deformed, broken, or lost; spring clips lose elasticity or break; or thread lock devices are damaged.

- Connection Area: Check for corrosion and jamming. Scrap if the pin is immovable or the corrosion depth exceeds 5% of the nominal size (unrepairable).

(3) Scrap and Disposal

- Immediately mark scrapped shackles, store separately, and prohibit reuse (fatigue damage may cause sudden fracture).

- Recycle scrapped shackles by material to avoid environmental pollution.

3. Special Scenario Requirements

- Marine Hoisting: Use marine-grade stainless steel or galvanized carbon steel shackles. Rinse with fresh water after use, apply anti-rust oil, and replace every 3 months for long-term seawater immersion.

- High-Altitude Operations: Equip shackles with anti-fall devices (e.g., safety ropes) and use self-locking spring clips to prevent locking component loss.

- Dynamic Traction (vehicle towing/equipment shifting): Use dynamic-load shackles with WLL considering impact factors (1.5-2.0); prohibit static-load shackles. Keep personnel away during traction.

- Low-Temperature Environments (<-20℃): Use low-temperature-resistant alloy shackles (avoid carbon steel, which is prone to brittle fracture) and check for cracks.

4. Additional Requirements for Export

- Marking Standards: Clearly mark WLL, safety factor, material, manufacturer, and production date/batch in both Chinese and English (e.g., "WLL 10T / Safety Factor 5 / Alloy Steel").

- Certification Requirements: Comply with CE (2006/42/EC) for the EU, ANSI B30.26 for the US, and AS 2741 for Australia, with corresponding certificates.

- Packaging and Manuals: Independent moisture-proof and shockproof packaging, with bilingual operation manuals (including selection, operation, inspection, and scrap procedures) and safety warning labels (e.g., "No Overloading" "Regular Inspection").
