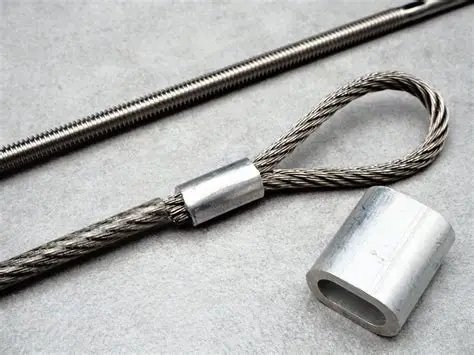

A aluminum ferrule (also called an aluminum sleeve or aluminum crimp) is a specialized aluminum alloy tubular fastener designed to secure the end of a steel wire rope. Its core function is to tightly wrap the steel wire rope through "compressive plastic deformation" to prevent slipping. It is suitable for light to medium-load scenarios (such as tent guy ropes, clotheslines, and light traction ropes) and cannot replace steel wire rope clips used for heavy loads. Below is a detailed explanation of its key features and usage methods:

I. Core Features of Aluminum Ferrules

- Essence: A one-time-use fastener (cannot rebound or be reused after compression). It is lightweight, rust-resistant, and cost-effective. It locks the steel wire rope through friction generated by compression, requiring no bolts and enabling easy installation.

- Key Matching: The inner diameter of the ferrule must match the diameter of the steel wire rope (e.g., 6mm steel wire rope → select a 6mm inner diameter ferrule). A too-large inner diameter will fail to secure the rope tightly, while a too-small one will damage the wire strands.

- Common Specifications: Inner diameters range from 1mm to 12mm (corresponding to steel wire ropes of different thicknesses), and lengths are usually 10-20mm. It is recommended to use 2 ferrules per steel wire rope (stacked for enhanced stability).

II. Usage Steps (Requires Special Crimping Tools, Very Simple)

1. Prepare Tools

Aluminum ferrules (selected based on the steel wire rope diameter), steel wire rope, manual crimping pliers (for small sizes, ≤8mm steel wire rope) or hydraulic crimping pliers (for large sizes), wire cutters (for trimming wires), and adhesive tape (for fixing loose strands).

2. Specific Operations (Taking "Securing the End of a Steel Wire Rope" as an Example)

1. Prepare the steel wire rope:

- If the end of the steel wire rope has loose strands, wrap it with 2-3 layers of adhesive tape first to prevent scattering when threading the ferrule.

- Loop the steel wire rope around a fixed component (such as a hook, bracket, or lifting ring) to form a "turnback loop" (the end of the rope is parallel to the main rope, and the length of the short tail is 5-8cm to facilitate sliding the ferrule on).

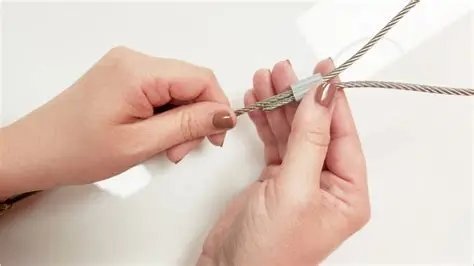

2. Slide the ferrule onto the rope:

- Take 1-2 ferrules and slide them onto the rope from the "end of the short tail" of the turnback loop until they reach the root of the loop (where the main rope and short tail fit closely, with no gaps left).

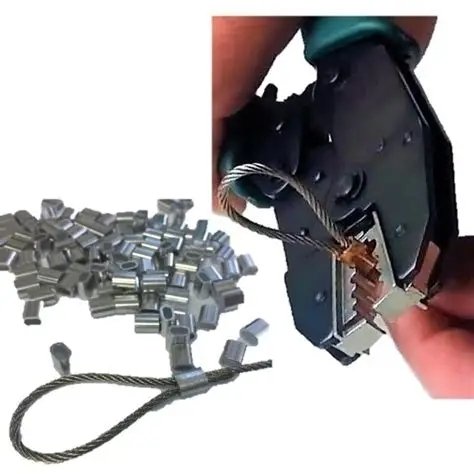

3. Crimp and secure (core step):

- Align the crimp die of the crimping pliers with the center of the ferrule, ensuring the die size matches the ferrule (crimping pliers usually come with dies of different specifications).

- Firmly squeeze the handle of the crimping pliers to fully deform the ferrule (it will become flat after crimping), making it tightly wrap the main rope and short tail with no loose gaps.

- If using 2 ferrules, keep a 5-10mm distance between them and crimp each separately (the second ferrule provides additional reinforcement to prevent slipping).

4. Trim and finish:

- Use wire cutters to trim the excess steel wire at the end of the short tail (leave a 1-2cm margin to avoid scratches from sharp edges).

- Tear off the adhesive tape wrapped earlier, gently pull the steel wire rope, and confirm that it is securely fixed.

III. Safety Precautions

1. Scenario Limitation: Only for light to medium-load fixation (e.g., tent guy ropes, clotheslines, light traction). Never use it for industrial hoisting or high-altitude heavy-load scenarios (use steel wire rope clips for heavy loads).

2. Proper Tools: Must use specialized crimping pliers. Do not strike with a hammer (hammering will cause uneven stress on the ferrule, leading to easy breakage or detachment).

3. No Reuse: The deformation of the ferrule is irreversible after crimping. Replace it with a new one after disassembly; do not reuse old ferrules.

4. Environment Adaptation: For humid or coastal environments, it is recommended to select stainless steel ferrules (better rust resistance); aluminum alloy ferrules are suitable for ordinary environments.

5. Check Stability: After installation, always perform a pull test. If the steel wire rope can slide, it indicates the ferrule is too large or the crimping is inadequate—replace the ferrule and re-crimp.
