Wire rope is one of the most critical components in lifting, rigging, hoisting, and industrial tensioning applications. Choosing the wrong wire rope can cause premature wear, broken wires, safety hazards, and unnecessary replacement costs.

Start with the equipment manufacturer’s wire rope specification, then match the rope construction, core, strength, and corrosion protection to the load and operating environment.

1. Understand Core Construction Types—and Why They Matter

Wire rope is defined by its strand construction, core type, and lay direction. These characteristics determine flexibility, fatigue resistance, crush resistance, and rotation tendency. The most common configurations include:

· 6×19: Six-strand ropes in the 6×19 class generally offer a balance of abrasion resistance and flexibility. They are used in a range of general-purpose lifting and rigging applications; the exact number of wires per strand varies by construction.

· 6×36: Six-strand ropes in the 6×36 class are generally more flexible than 6×19 class ropes, making them suitable for repeated bending over sheaves or drums. They are commonly used in cranes, hoists, and material handling systems.

· 8×19 or 8×36: Eight-strand ropes may be selected for particular equipment and operating conditions. Their crush resistance depends on the complete rope design and core, not strand count alone.

· Rotation-resistant ropes (e.g., 19×7 or 35×7): These ropes are designed to reduce torque-induced rotation. They may be specified for long lifts or other applications where load rotation must be controlled; follow the equipment and rope manufacturers’ requirements.

Crucially, the core type modifies performance further. Fiber cores (FC) can provide flexibility but offer less support under compression. Independent wire rope cores (IWRC) help the rope maintain its shape under compression and resist crushing. The appropriate core depends on the equipment specification and operating conditions.

Tip: Never substitute a 6×19 FC rope for a specified 6×36 IWRC rope in a crane drum application solely because both meet the same minimum breaking force. Confirm the complete rope specification before ordering.

2. Match Strength Ratings to Your Load Profile—Not Just “Safety Factor”

Manufacturers list Minimum Breaking Force (MBF), usually in kilonewtons (kN) or pounds-force (lbf). But MBF alone does not establish a rope’s allowable working load. Selection depends on how the rope is loaded: statically, dynamically, or cyclically—and whether shock loads occur.

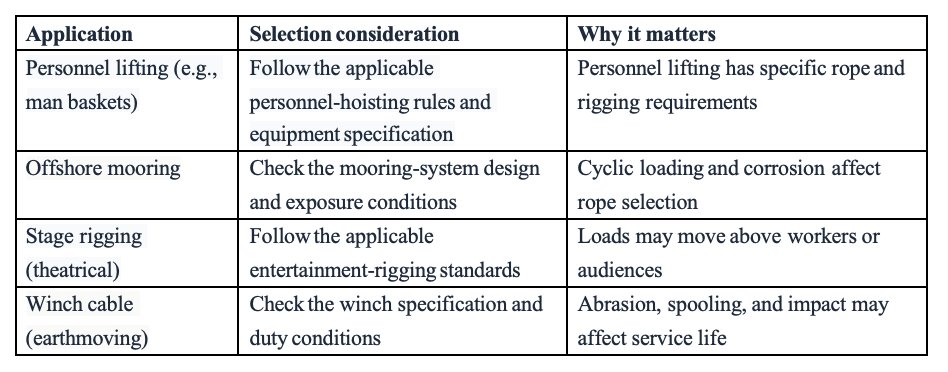

Design factor requirements vary by equipment, rope type, and application. Check the applicable standard and the equipment manufacturer’s instructions instead of applying one ratio to every wire rope. The following applications call for different selection considerations:

Note: A design factor does not account for damage that develops in service. Inspect ropes for broken wires, corrosion, kinking, and crushing, and apply the relevant removal-from-service criteria. Do not use a fixed percentage reduction as a substitute for inspection.

3. Corrosion Resistance Isn’t Optional—It’s Calculated

Corrosion can shorten wire rope service life, especially in wet, coastal, or chemically aggressive environments. Yet many buyers default to galvanized rope without evaluating the conditions in which it will operate. Zinc coating specifications matter, but service life also depends on exposure and maintenance. Stainless steel (e.g., grade 316) may offer better corrosion resistance in some environments, but the selected rope must still meet the equipment’s strength and construction requirements.

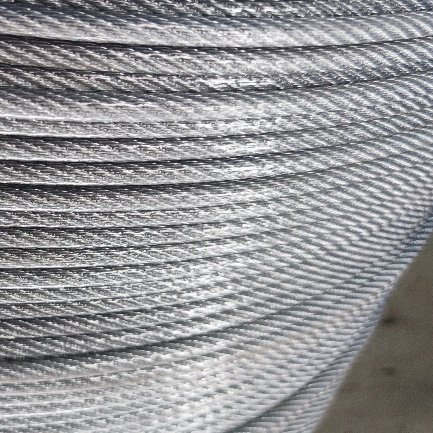

Zinc coating

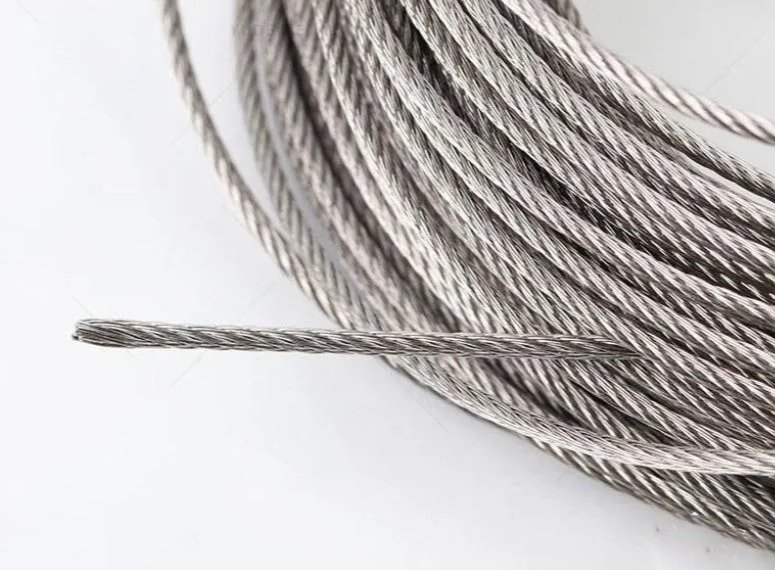

Stainless steel

More nuanced is the role of lubrication. Initial lubrication is not a complete maintenance strategy. Ropes operating in dusty or wet environments need inspection and lubrication suited to their construction and conditions. Follow the rope manufacturer’s guidance when choosing a lubricant and maintenance schedule.

Frequently Asked Questions

What is the difference between 6×19 and 6×36 wire rope?

Both are six-strand rope classes. In general, 6×36 class ropes use more, smaller wires in each strand and offer greater flexibility for repeated bending. The exact choice depends on the individual rope construction and the equipment’s requirements.

Can I replace a wire rope with another rope of the same diameter?

Diameter alone is not enough. The replacement must also meet the equipment manufacturer’s requirements for construction, grade, core, strength, and other relevant specifications.

Is galvanized or stainless steel wire rope better?

It depends on the application. Galvanized rope is widely used where zinc-coated carbon steel meets the strength and corrosion requirements. Stainless steel may be considered where the environment calls for it, provided the selected rope also meets the equipment’s performance requirements.

Choosing Wire Rope for Your Application

The best wire rope is the one that matches the equipment specification, operating load, movement pattern, and environment. Confirm these details before comparing prices or placing an order. If you need help identifying a suitable rope for your project, send HUAHAN your application details and existing rope specification for review.
