Introduction

Ratchet tie-downs, also known as ratchet straps, cargo lashing straps, or cargo securing straps, are widely used to secure loads during land transportation. A ratchet tie-down consists of durable synthetic webbing, a ratcheting tensioning mechanism, and end fittings such as S-hooks, J-hooks, flat hooks, or snap hooks.

Whether you are moving household furniture, transporting industrial equipment, delivering palletized goods on a flatbed truck, or securing cargo on a utility trailer, a properly selected and correctly installed ratchet strap can help prevent the load from shifting, sliding, or tipping during transit.

Knowing how to use a ratchet tie-down correctly is important for occasional users, warehouse operators, logistics teams, and commercial truck drivers. This guide explains how to thread, tighten, lock, release, inspect, and store a ratchet tie-down strap safely.

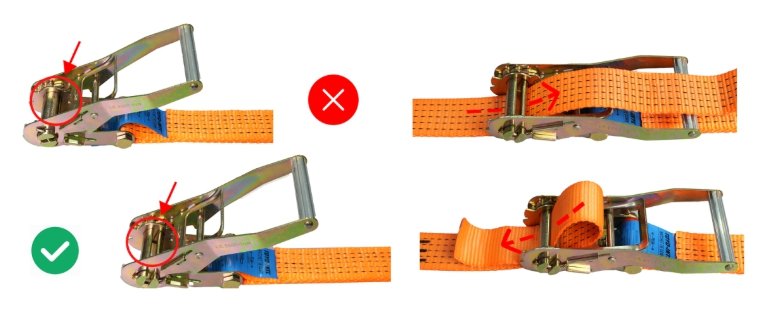

How to Thread a Ratchet Tie-Down Strap

Correct threading is the foundation of reliable tension. If the webbing is not inserted through the ratchet spindle properly, the strap may slip, loosen, or fail to hold the cargo securely.

1. Open the Ratchet Mechanism

Press and hold the release latch on the ratchet handle. Pull the operating handle fully open until the spindle slot in the center of the ratchet is accessible.

If the spindle slot is not positioned correctly, move the handle through several short ratcheting strokes until the slot is easy to reach.

2. Insert the Webbing Through the Spindle

Feed the loose end of the adjustable webbing through the slot in the center spindle. Insert the webbing from underneath the spindle and pull it through from the opposite side.

Make sure the webbing is flat and free from twists.

3. Pull Through the Excess Webbing

Pull the loose end of the strap by hand until most of the slack has been removed. Leaving too much loose webbing inside the ratchet can cause excessive material to build up around the spindle and prevent the ratchet from operating correctly.

For efficient tensioning, the webbing should normally wrap around the spindle only a few times after tightening.

How to Tighten a Ratchet Strap and Secure the Load

Once the webbing has been threaded correctly, connect the ratchet tie-down to suitable anchor points and begin tensioning the strap.

1. Attach the End Hooks

Attach the S-hooks, J-hooks, flat hooks, or other end fittings to designated vehicle anchor points, trailer D-rings, or approved cargo lashing points.

Check that every hook is fully seated and correctly aligned. A hook should not rest only on its tip or on a thin edge, because it may bend, slip, or disengage when tension is applied.

Only use anchor points that are suitable for the expected load. Do not attach hooks to plastic trim, weak sheet metal, damaged fittings, or other structures that cannot withstand the required securing force.

2. Remove All Slack

Pull the loose end of the webbing until the strap lies firmly across the cargo and most of the slack has been removed.

Make sure the webbing remains flat throughout its full length. Remove any twists, folds, knots, or kinks before applying tension. Twisted or folded webbing distributes force unevenly and may reduce the strap’s effective strength.

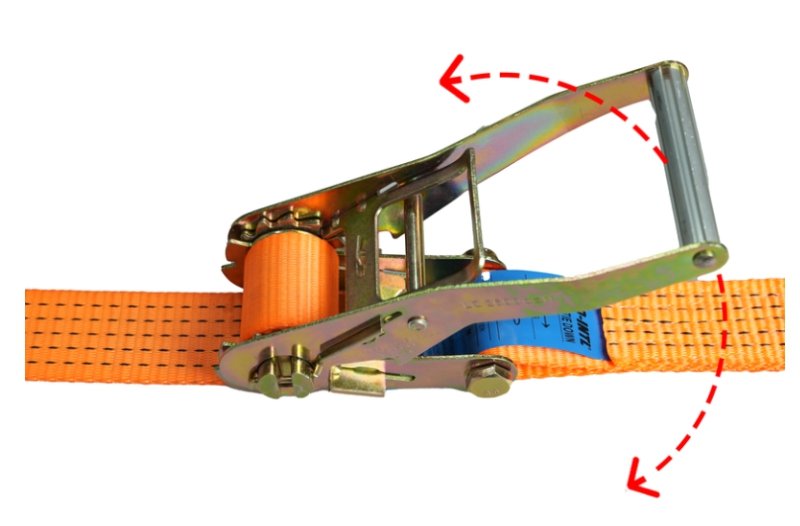

3. Tighten the Ratchet Gradually

Move the ratchet handle back and forth using controlled strokes. The webbing will wind around the center spindle and gradually create tension.

Continue ratcheting until the cargo is stable and cannot move under normal handling. The required tension depends on the cargo type, weight, shape, securing direction, friction, number of straps, and applicable transportation regulations.

Do not over-tighten the strap. Excessive tension can crush cartons, dent metal panels, damage furniture, deform machinery components, or overload the webbing and anchor points.

For delicate or easily damaged cargo, use corner protectors, packing blankets, rubber pads, or other suitable protective materials.

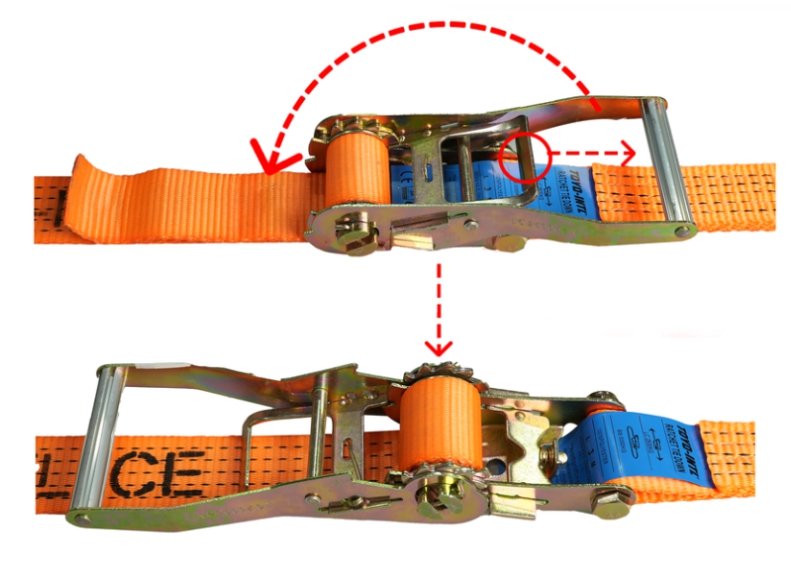

4. Lock the Ratchet and Secure the Loose End

After reaching the required tension, close the ratchet handle completely until it lies flat in the locked position. Confirm that the locking pawl is fully engaged and that the handle cannot open accidentally.

Roll or fold the remaining loose webbing and secure it so that it cannot flap in the wind, contact moving components, drag on the road, or become caught on nearby objects.

Before starting the journey, check that:

- The ratchet handle is fully closed.

- The hooks are correctly seated.

- The webbing is flat and undamaged.

- The loose strap end is secured.

- The cargo cannot slide, roll, tilt, or shift.

- The strap does not contact sharp or hot surfaces.

Recheck the tension after traveling a short distance and periodically during transportation, especially after sudden braking, rough road conditions, or changes in weather.

How to Release a Ratchet Tie-Down Strap

Ratchet straps may store considerable tension. Release the strap slowly and carefully to prevent sudden cargo movement, hook disengagement, or webbing snap-back.

Before releasing the tie-down, make sure the cargo is stable and will not fall, roll, or shift when the restraining force is removed.

1. Unlock the Ratchet Mechanism

Stand clear of the expected path of the strap, hooks, and cargo.

Press and hold the release latch. Pull the ratchet handle into its fully open, flat position. This disengages the locking pawl and allows the spindle to rotate freely.

2. Create Sufficient Slack

While keeping control of the strap, pull the adjustable webbing out of the spindle until the tension is fully released.

Do not place your face, hands, or body directly over the strap while releasing it. If the cargo has shifted during transportation, the strap or hooks may move suddenly when the tension is removed.

3. Disconnect the Hooks and Remove the Strap

Once the strap is completely loose, remove the hooks carefully from the anchor points.

Pull the webbing out of the ratchet spindle and remove the complete tie-down assembly from the cargo. Check the webbing, hooks, ratchet frame, spindle, springs, and locking pawls for any damage that may have occurred during transportation.

Ratchet Tie-Down Safety and Maintenance Tips

1. Protect the Cargo and Webbing from Abrasion

Synthetic webbing can be damaged by sharp corners, rough metal surfaces, burrs, and continuous friction. Use edge protectors, sleeves, rubber pads, cardboard, or packing blankets wherever the strap contacts a sharp or abrasive surface.

Position the ratchet mechanism where it will not strike, scratch, or press directly against a delicate cargo surface. If necessary, place suitable protective material between the ratchet housing and the cargo.

Never allow the webbing to contact hot exhaust components, open flames, welding areas, strong chemicals, or moving machinery.

2. Inspect the Ratchet Strap Before Every Use

Inspect the complete ratchet tie-down assembly before each use.

Check the webbing for:

- Cuts, tears, or holes

- Fraying or broken fibers

- Heavy abrasion

- Heat or chemical damage

- UV degradation

- Damaged stitching

- Knots or permanent deformation

- Missing or unreadable identification labels

- Check the metal components for:

- Cracks or deformation

- Bent or damaged hooks

- Damaged gears or spindle

- Broken springs

- Sharp edges that could cut the webbing

Remove any damaged ratchet tie-down from service immediately. Do not knot, sew, weld, heat, or otherwise modify a damaged strap unless the work is performed through an approved repair process.

3. Store Ratchet Tie-Downs Correctly

After use, clean away dirt, sand, salt, oil, or other contaminants according to the product instructions. Allow wet webbing to dry naturally before storage.

Store ratchet tie-downs in a clean, dry, well-ventilated, and shaded location. Keep them away from direct sunlight, rain, excessive heat, chemical solvents, acids, alkalis, and corrosive substances.

Roll each strap separately to prevent tangling and unnecessary abrasion. Do not store webbing with knots, because knots can create permanent stress points and reduce performance.

Lubricate moving metal parts only when recommended, and prevent oil or lubricant from contaminating the webbing.

4. Never Exceed the Working Load Limit

Always check the product label and confirm the Working Load Limit (WLL) before using a ratchet tie-down.

The Working Load Limit is the maximum load that the tie-down assembly is designed to handle under specified service conditions. It is not the same as breaking strength.

Never exceed the marked WLL, and do not select a strap based only on cargo weight. The required number and capacity of tie-downs also depend on the restraint method, tie-down angle, cargo shape, friction, vehicle movement, and applicable local regulations.

The strength of a complete ratchet tie-down assembly is determined by its lowest-rated component. Webbing, ratchet mechanisms, hooks, stitching, and anchor points must therefore be selected as a complete securing system.

Conclusion

A ratchet tie-down is a simple but highly effective cargo-securing device when it is selected, threaded, tensioned, and maintained correctly. Before every journey, inspect the entire assembly, confirm the Working Load Limit, use suitable anchor points, protect the webbing from sharp edges, and make sure the ratchet is fully locked.

Correct use helps reduce cargo movement, product damage, equipment loss, and transportation risks while extending the service life of the tie-down.
