A chain block, also known as a manual chain hoist or hand chain hoist, is widely used for lifting and handling loads in construction, workshops, warehouses and industrial applications. Proper operation, inspection and maintenance are essential for reliable lifting. This guide explains the basic operating procedures, pre-use checks and maintenance requirements for chain blocks.

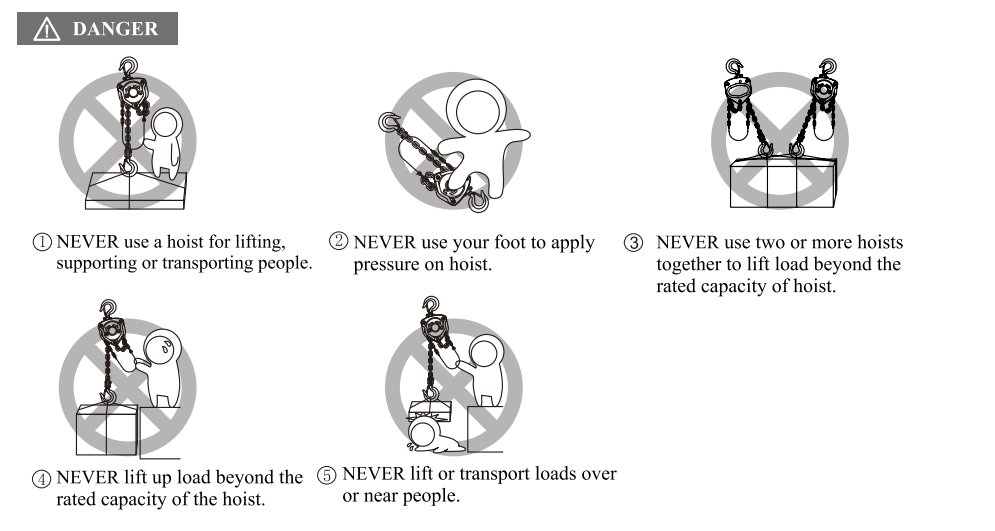

1. General Safety Information

Failure to read and follow the instructions in this guide can result in serious bodily injury, equipment damage or property damage. Even if you are familiar with this or similar lifting equipment, read the operating instructions before installation, operation or maintenance.

The equipment described here should not be used together with other equipment unless the combination is appropriate for the lifting system and all required protective devices are in place. The manufacturer is not responsible for loss, damage or claims arising from misuse of the equipment.

Any modification intended to upgrade, rerate or otherwise alter the equipment should be authorized by the original equipment manufacturer.

2. Checks Before Using a Chain Block

Operators should read the operating instructions and all labels on the hoist or lifting system. They should also be familiar with the controls before operating the equipment.

Do not use the hoist if the hook has deep nicks, gouges, deformation or excessive stretching. Replace any damaged hook with an appropriate new part before use.

1. Ensure that all information on the nameplate is clear and visible.

2. Check the hoist before daily use in accordance with the daily inspection requirements.

3. Estimate the weight of the load and select a hoist with a suitable rated capacity.

4. Ensure that the hooks are not deformed and rotate freely without roughness.

5. Ensure that the brake system operates normally.

6. Lubricate the load chain according to the manufacturer's recommendations.

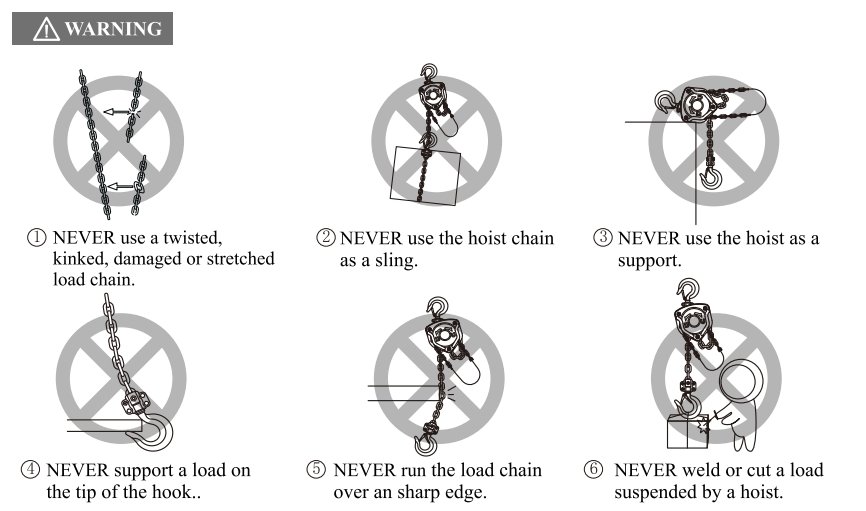

3. Rules During Operation

1. Never use a damaged hoist or a hoist that is not working properly.

2. Never swing a suspended load.

3. Never use the hoist chain as a welding electrode.

4. Do not continue lifting until the bottom hook touches the hoist body.

5. Do not operate the hoist until the load chain pulls against the anchorage.

6. Stop operation if excessive or abnormal noise occurs.

7. Keep full attention on the lifting operation at all times.

4. After Lifting

Lower the load slowly and securely after lifting.

Do not leave a load suspended for an extended period of time.

5. Chain Block Inspection and Maintenance

Have the hoist inspected periodically by qualified service personnel.

Do not repair a hook by heat treatment, bending or welding. These procedures may weaken the hook and increase the risk of failure.

6. Special Operating Environments

Consult the manufacturer or your dealer before using a hoist in an excessively corrosive environment, including salt water, sea air, acidic environments, explosive environments or areas containing other corrosive compounds.

Do not use a hoist that has been taken out of service until it has been properly repaired, inspected and returned to service.

Frequently Asked Questions About Chain Blocks

- What should be checked before using a chain block?

Check the hooks, load chain, brake system, nameplate and rated capacity before operation. Make sure there is no visible deformation, excessive wear or abnormal operation.

- Can a chain block be used with a damaged hook?

No. A chain block should not be operated if the hook has deep nicks, gouges, deformation or excessive stretching. The damaged hook should be replaced with an appropriate replacement part.

- Can a load remain suspended on a chain block for a long time?

No. A suspended load should not be left unattended or remain suspended for an extended period.
