A load binder—also called a chain binder—is a cargo securement device that tensions transport chain through a ratchet or lever mechanism. The binder, chain, hooks and anchor points must have compatible working load limits (WLL); the complete system is limited by its lowest-rated component. A load binder is for cargo securement, not overhead lifting.

1. What Is a Load Binder?

A load binder is a mechanical tensioning device installed in a transport chain assembly. By shortening the effective distance between its end hooks, it introduces pre-tension into the chain and helps restrain cargo against sliding, rolling or tipping during braking, cornering, vibration and acceleration.

Typical applications include construction equipment, steel, pipe, lumber, agricultural machinery, vehicles and other heavy cargo carried on flatbed trailers. A complete chain securement system normally includes vehicle anchor points, transport chain, the load binder, grab hooks or other end fittings, plus blocking, chocks or edge protection when needed.

The essential distinction is that a load binder is designed for cargo securement in transport, not for lifting a suspended load. Selection and use should always follow product markings, manufacturer instructions, chain grade, compatible chain diameter and WLL.

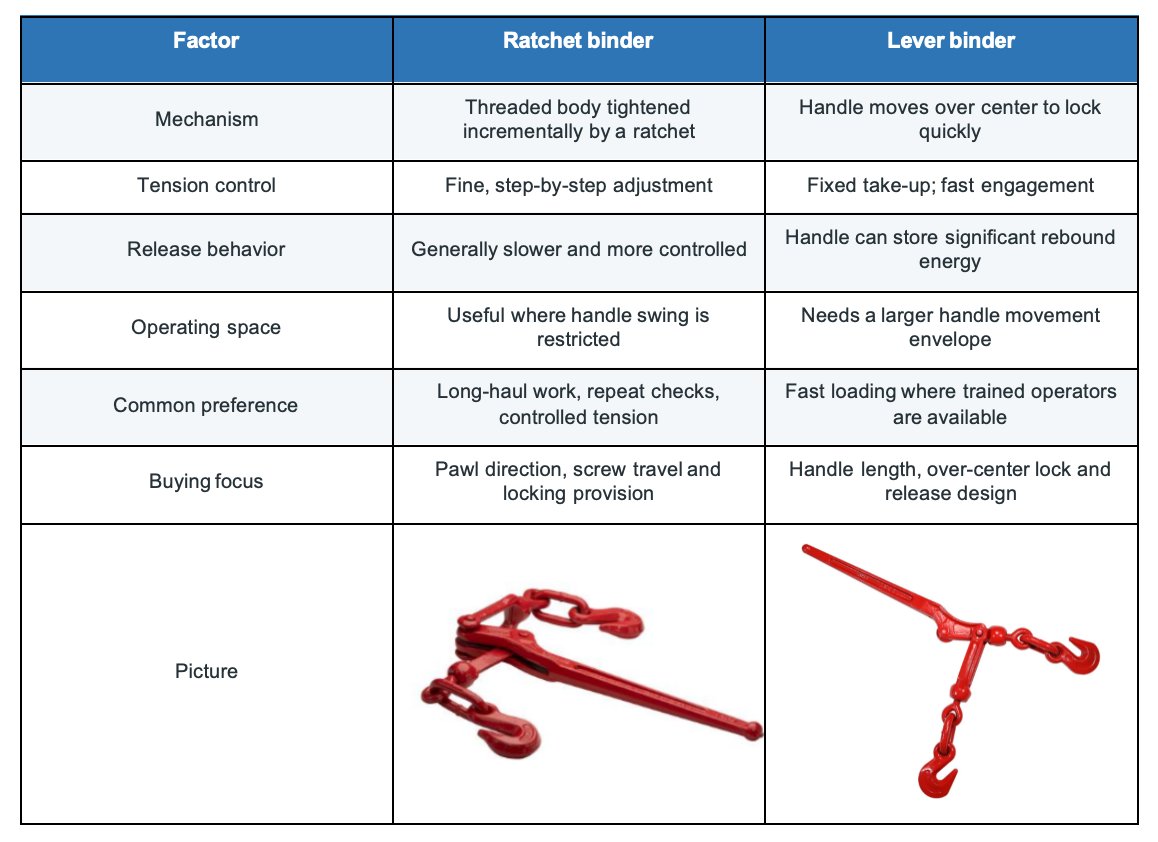

2. Ratchet vs. Lever Load Binder

SELECTION TIP  When the buyer has no fixed preference, a ratchet binder is often the more versatile choice because tensioning and release are easier to control. The final choice must still follow local rules, company procedures and operator training.

3. Understanding WLL and the Weakest-Link Rule

Working Load Limit (WLL) is the maximum load that may be applied to a component under specified service conditions. WLL is not breaking strength and cannot be estimated from appearance. The binder, chain, hooks and anchor points must be evaluated as one system.

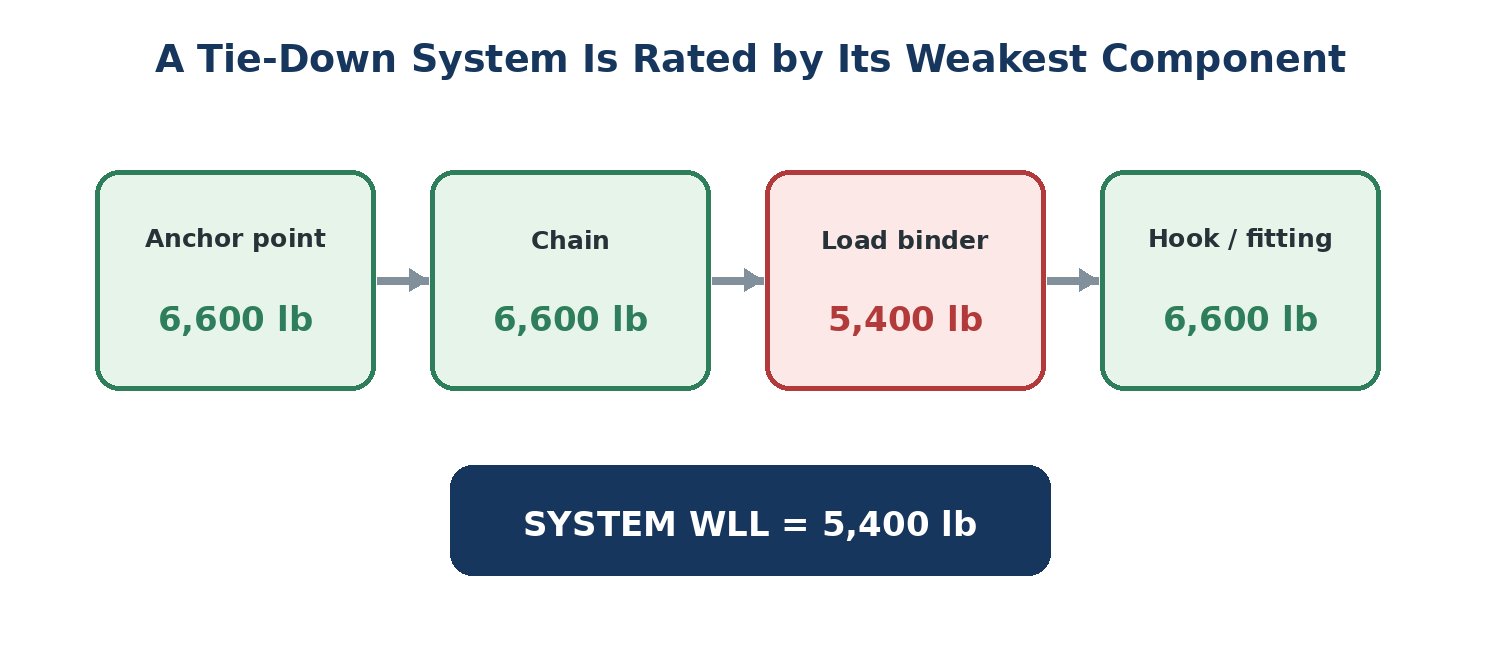

EXAMPLE  If the chain is rated at 6,600 lb, the binder at 5,400 lb, and the hooks and anchor points at 6,600 lb, that tie-down path is limited to 5,400 lb—not 6,600 lb.

4. How to Match a Load Binder to Chain

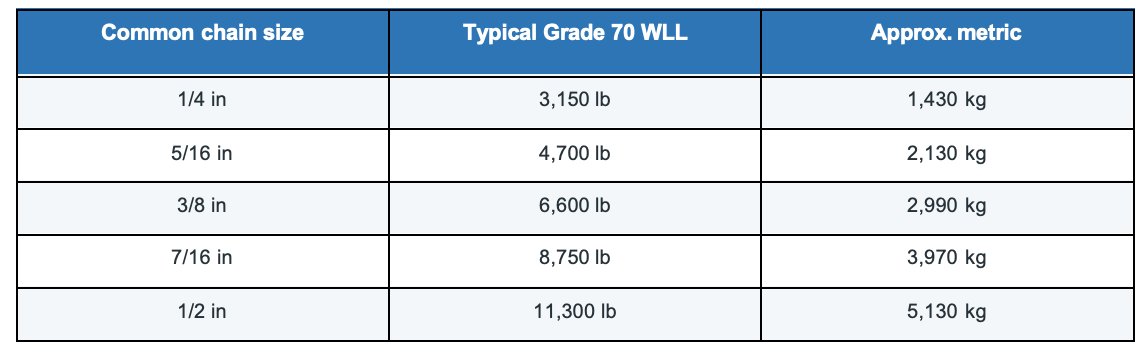

Do not select by chain diameter alone. Confirm chain size, chain grade, the binder’s stated compatibility range, both WLL values, and correct seating of the grab hooks. The figures below are common North American Grade 70 transport-chain reference values; purchasing decisions must follow the binder marking, manufacturer specification and applicable rules.

Five Compatibility Checks

· Chain size: for example 5/16 in, 3/8 in or 1/2 in.

· Chain grade: Grade 70, Grade 80 and other grades must not be identified by color alone.

· WLL: binder capacity must satisfy the design requirement; the system uses the lowest rating.

· Hook fit: the grab hook must seat fully on the chain link, never on the hook tip.

· Take-up: available travel must remove slack while leaving adjustment for re-tensioning.

5. How to Use a Load Binder Correctly

1. Inspect the equipment

Check for bends, cracks, severe corrosion, unauthorized weld repairs, damaged threads, ratchet malfunction or distorted hook openings. Inspect chain and anchor points at the same time.

2. Stabilize the cargo

Use suitable blocking, chocks, wedges or cradles to control rolling and sliding. Extra chain tension is not a substitute for stable cargo support.

3. Connect and align

Seat both hooks fully in suitable chain links; never load the hook tip. Keep the binder aligned with the chain to avoid side loading.

4. Apply controlled tension

Remove slack, then tension with steady, controlled force. Stay clear of the handle’s potential recoil path and do not use a cheater bar unless expressly permitted by the manufacturer.

5. Secure and recheck

Confirm the mechanism cannot loosen in transit. Restrain excess chain so it cannot drag or whip. Recheck tension after departure and during the trip as required by regulations and company procedures.

Regulatory Notes: U.S. Highway Transport Example

· 49 CFR §393.102 requires cargo securement systems to withstand specified deceleration and acceleration conditions without exceeding component breaking-strength and WLL criteria.

· FMCSA’s general rule states that aggregate WLL used to restrain an article or group against movement is generally at least one-half the cargo weight. The required number also depends on length, weight, arrangement and commodity-specific rules.

· 49 CFR §393.104 requires securement devices to be in proper working order, without damage or weakened components that adversely affect performance; chain must conform to the incorporated NACM welded-steel-chain specification.

· Each tiedown must be attached so it cannot loosen, unfasten, open or release in transit. Edge protection is required where abrasion or cutting can occur.

SCOPE NOTE  This summary explains general U.S. federal highway-transport principles. It does not replace rules for a particular route, jurisdiction, vehicle or commodity, nor a professional securement plan. Export buyers should confirm requirements in the destination market.

Frequently Asked Questions

Are “load binder” and “chain binder” the same product?

Usually, yes. Both terms describe a cargo device used to tension transport chain. “Chain tensioner” and “chain load binder” are also common search terms.

Is a ratchet binder always safer than a lever binder?

Not categorically. Ratchet binders generally permit incremental tensioning and controlled release, but safety depends on correct selection, condition, training, regulations and the work site.

Can a load binder be used for lifting?

No. Unless a completely different product is specifically designed, rated and documented for lifting, a standard load binder is for cargo securement only.

Can binder WLL be lower than chain WLL?

The components may have different ratings, but the tie-down path must be evaluated at the lower binder WLL. It cannot be credited at the chain’s higher WLL.

Why must tension be checked during transport?

Vibration, cargo settling, temperature change and chain seating can reduce pre-tension, so rechecks are required by applicable rules and company procedures.

Can I put a pipe over the handle for more leverage?

Not unless the manufacturer expressly permits it. Extra leverage can overload the assembly, damage components and increase recoil risk.

What information is needed for a quotation?

Specify binder type, chain size and grade, required WLL, take-up, finish, quantity, packaging, destination market and required tests or documents.

A load binder is mechanically simple, but its selection directly affects the reliability of the entire chain securement system. Start with the cargo, vehicle and applicable rules; match the WLL of binder, chain, hooks and anchor points; inspect before use; and recheck during transport. For professional buyers, clear specifications, permanent markings, traceable quality control and dependable supply matter more than price alone.
