When purchasing lifting and rigging hardware—such as chains, shackles, turnbuckles, wire rope clips, wire rope thimbles, hooks, and chain block components—the material and surface finish significantly affect corrosion resistance, service life, maintenance requirements, appearance, and overall project cost.

However, material selection alone does not determine the Working Load Limit (WLL) or overall safety of lifting hardware. Product design, steel grade, heat treatment, manufacturing quality, testing, applicable standards, and correct use must also be considered.

Many buyers and engineers make two common mistakes: choosing bright but lightly protected hardware for long-term outdoor projects, or paying for premium stainless steel when economical galvanized carbon steel would be sufficient.

This guide compares four common rigging material and finish options:

• Electro-galvanized carbon steel

• Hot-dip galvanized carbon steel

• Stainless steel 304

• Stainless steel 316

It will help buyers select a cost-effective and suitable option for indoor, outdoor, coastal, marine, and corrosive working environments.

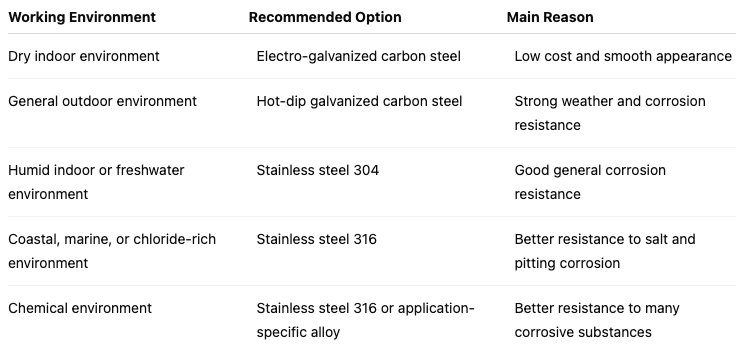

Quick Material Selection Guide

The final selection should always be based on the actual load, exposure conditions, inspection requirements, and applicable lifting standards.

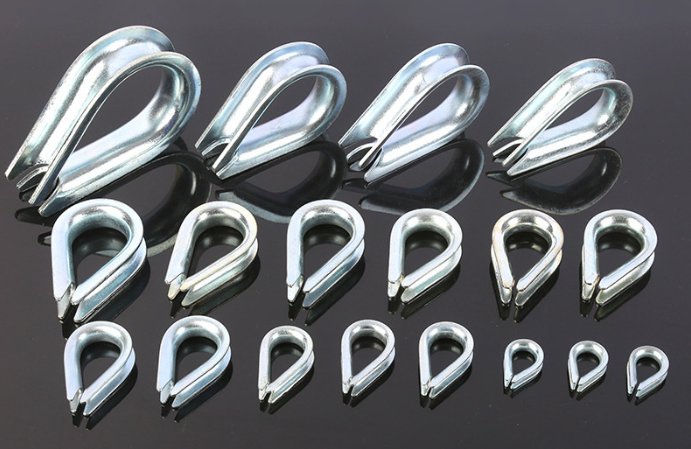

1. Electro-Galvanized Carbon Steel

Electro-galvanizing, also called zinc plating or cold galvanizing, is an electrolytic surface-treatment process that forms a relatively thin zinc coating on carbon steel. Typical coating thicknesses are often approximately 5–15 μm, although the actual thickness depends on the product specification and manufacturing process.

Advantages

- Smooth, bright, and uniform surface

- Maintains relatively precise thread tolerances

- Minimal zinc buildup or burrs on threaded parts

- Easy to assemble

- Lower cost and relatively short production lead time

- Attractive appearance for finished-product matching

Disadvantages

- Thin zinc coating provides limited long-term corrosion resistance

- Scratched or damaged areas may expose the carbon steel and rust quickly

- Not suitable for continuous exposure to rain, high humidity, or salt spray

- Electroplating high-strength steel requires proper process control and hydrogen-embrittlement relief when applicable

Best Applications

Electro-galvanized rigging hardware is generally suitable for:

- Indoor factory applications

- Dry inland environments

- Short-term indoor equipment installations

- Projects with strict appearance requirements

- Budget-sensitive applications with limited environmental exposure

Not Recommended For

- Long-term outdoor use

- Rainy construction sites

-  Coastal and marine environments

- Humid workshops with continuous moisture exposure

- Chloride-rich or chemically corrosive environments

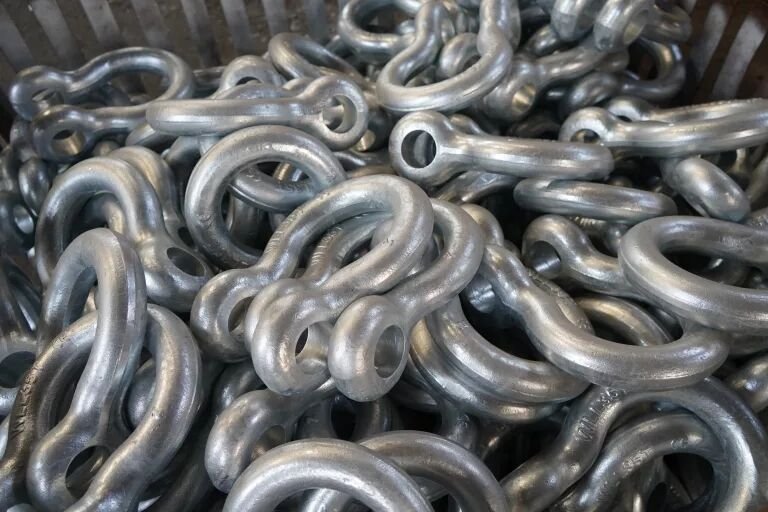

2. Hot-Dip Galvanized Carbon Steel

Hot-dip galvanizing, commonly abbreviated as HDG, involves immersing prepared carbon steel components in molten zinc. This process forms a relatively thick zinc-alloy coating that is metallurgically bonded to the steel surface.

The coating is commonly thicker than electro-galvanized zinc plating. Actual coating thickness varies according to the steel thickness, product design, process, and applicable specification.

Advantages

- Strong corrosion and rust resistance

- Good weather resistance in outdoor environments

- Thick and durable protective zinc coating

- Sacrificial zinc protection can help protect small exposed areas

- Cost-effective for many outdoor industrial applications

- Generally provides a longer outdoor service life than electro-galvanizing

Disadvantages

- Surface is usually duller and rougher than electro-galvanized hardware

- Zinc buildup may affect threads or dimensional tolerances

-- Thread cleaning or re-threading may occasionally be required

- High-temperature processing must be carefully controlled for certain high-strength components

- Not automatically suitable for every lifting-grade or heat-treated product

Best Applications

Hot-dip galvanized rigging hardware is commonly used for:

- Outdoor construction sites

- Inland open-air lifting applications

- Rainy environments

- Wind power projects

- Inland docks

- Agricultural and general industrial equipment

- Outdoor chains, shackles, turnbuckles, and wire rope fittings

Not Recommended For

- Continuous seawater immersion without application-specific verification

- Severe coastal salt-spray exposure

- Strong acidic or alkaline environments

- Chemical-processing environments requiring specialized alloys

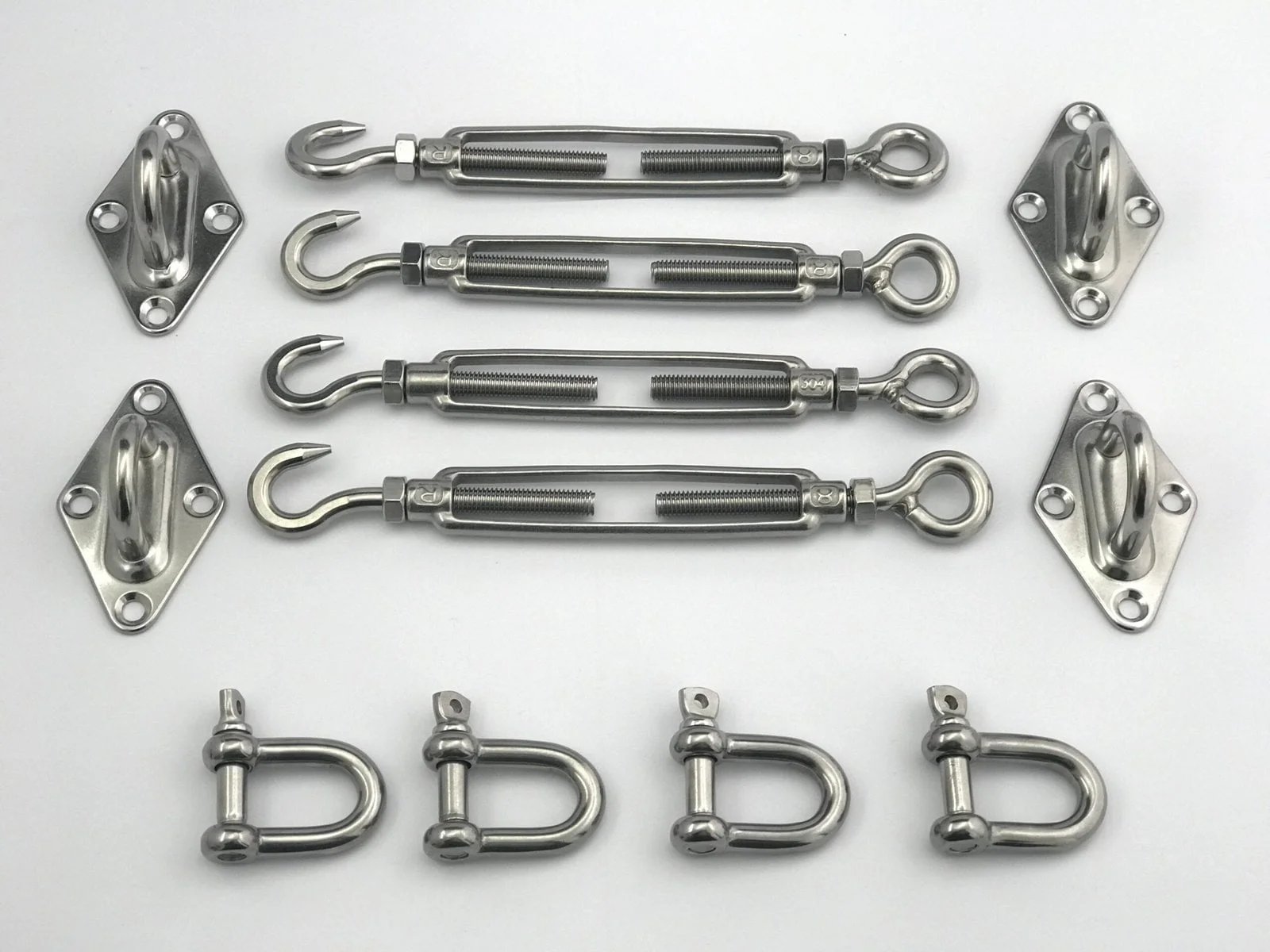

3. Stainless Steel 304

Stainless steel 304, often classified as A2 stainless steel for many fastener applications, is one of the most widely used austenitic stainless steels. It typically contains approximately 18% chromium and 8% nickel.

Unlike galvanized carbon steel, stainless steel does not rely on an applied zinc coating. Its corrosion resistance comes from a chromium-rich passive oxide layer that can reform when the surface is properly exposed to oxygen.

Advantages

- Good corrosion resistance in normal atmospheric environments

- No zinc coating that can peel or wear away

- Smooth and attractive appearance

- Relatively low maintenance requirements

- Suitable for freshwater and many humid environments

- Commonly used where cleanliness and appearance are important

Disadvantages

- Does not contain the molybdenum level found in stainless steel 316

- Less resistant to chloride-induced pitting and crevice corrosion

- May corrode in coastal salt spray or chloride-rich environments

- More expensive than many galvanized carbon-steel products

- Stainless steel appearance does not automatically mean a higher lifting capacity

Best Applications

Stainless steel 304 rigging hardware is generally suitable for:

- Humid indoor workshops

- Freshwater equipment

- Food-processing machinery, subject to application requirements

- Architectural and landscape installations

- Inland outdoor applications

- Clean environments requiring an attractive appearance

Not Recommended For

- Continuous seaside exposure

- Marine salt-spray environments

- Seawater immersion

- High-chloride environments

- Applications involving chemicals incompatible with SS304

4. Stainless Steel 316

Stainless steel 316, often classified as A4 stainless steel for many fastener applications, contains molybdenum in addition to chromium and nickel. The molybdenum significantly improves resistance to chloride-induced pitting and crevice corrosion.

For this reason, stainless steel 316 is commonly selected for marine, coastal, and other highly corrosive environments.

Advantages

- Better chloride resistance than stainless steel 304

- Strong resistance to pitting and crevice corrosion

- Suitable for many coastal, marine, and salt-spray environments

- Good performance in many mildly corrosive chemical applications

- Long service life when correctly selected, installed, and maintained

- No galvanized coating that can wear away

Disadvantages

- Usually the most expensive of the four options

- Still requires inspection and appropriate maintenance

- Not resistant to every chemical or marine condition

- Material grade alone does not confirm lifting capacity or product certification

- May not be cost-effective for dry indoor applications

Best Applications

Stainless steel 316 rigging hardware is commonly selected for:

- Coastal docks

- Ship deck equipment

- Offshore facilities

- Marine rigging systems

- Seawater-exposed equipment

- Salt-spray environments

- Chemical workshops

- Food and processing environments with chloride exposure

- For permanent seawater immersion, offshore lifting, or critical load-bearing applications, the exact alloy, product design, WLL, manufacturing standard, inspection plan, and expected corrosion conditions should be verified before use.

Electro-Galvanized vs. Hot-Dip Galvanized Rigging

The main difference between electro-galvanized and hot-dip galvanized rigging hardware is the thickness and durability of the zinc protection.

Electro-galvanized products usually have a smoother and brighter finish, making them suitable for indoor applications and projects where appearance is important. However, their thinner zinc layer provides less protection outdoors.

Hot-dip galvanized products normally have a thicker, rougher, and less reflective surface. Their stronger corrosion protection makes them a better choice for outdoor lifting and industrial applications.

In simple terms:

Choose electro-galvanized hardware for dry indoor use and lower initial cost.

Choose hot-dip galvanized hardware for general outdoor use and longer corrosion protection.

Stainless Steel 304 vs. Stainless Steel 316 Rigging

The most important difference between stainless steel 304 and 316 is the addition of molybdenum in SS316.

SS304 provides good general corrosion resistance and is suitable for many indoor, freshwater, and inland applications. SS316 provides better resistance to chlorides and is therefore preferred for coastal, marine, and salt-spray environments.

In simple terms:

Choose stainless steel 304 for humid, freshwater, and general inland environments.

Choose stainless steel 316 for coastal, marine, and chloride-rich environments.

Common Industry Misconceptions

Misconception 1: A Brighter Surface Means Better Rust Resistance

Electro-galvanized hardware often has the brightest appearance, but it generally provides less long-term outdoor corrosion protection than hot-dip galvanized hardware.

Hot-dip galvanized hardware may look dull or slightly rough, but its thicker zinc coating usually provides stronger protection in outdoor environments.

Misconception 2: Stainless Steel 304 Is Suitable for All Seaside Applications

Stainless steel 304 resists corrosion in many normal and freshwater environments, but it is vulnerable to chloride-induced pitting.

Long-term exposure to coastal salt spray may cause localized corrosion. For marine or coastal rigging hardware, stainless steel 316 is generally the more suitable option, subject to the specific application and lifting requirements.

Misconception 3: Any Scratch Means Galvanized Protection Has Failed

Hot-dip galvanized coatings provide sacrificial protection. The surrounding zinc may continue to protect small exposed areas when minor scratches occur.

However, large damaged areas, deep abrasion, or significant coating loss still require inspection. Thin electro-galvanized coatings generally provide less protection after surface damage.

Misconception 4: Stainless Steel Is Always Stronger Than Carbon Steel

Stainless steel offers excellent corrosion resistance, but it is not automatically stronger than alloy-steel or heat-treated carbon-steel lifting hardware.

Always compare the product’s Working Load Limit, proof-load requirements, material grade, heat treatment, manufacturing standard, and certification—not only its appearance or general material category.

How to Select the Right Rigging Material

Before purchasing lifting and rigging hardware, consider the following questions:

Will the product be used indoors or outdoors?

Will it be exposed to rain, humidity, salt spray, or seawater?

Are chlorides, acids, alkalis, or industrial chemicals present?

What Working Load Limit is required?

Is the product intended for lifting, pulling, securing, or non-load-bearing use?

Which manufacturing and testing standards apply?

How often will the product be inspected and maintained?

Is appearance more important than long-term corrosion protection?

What is the expected service life?

What is the total lifecycle cost, including inspection, replacement, and maintenance?

For critical lifting operations, consult the manufacturer or a qualified lifting professional before selecting the material and product specification.

Frequently Asked Questions

What is the best material for outdoor rigging hardware?

Hot-dip galvanized carbon steel is often the most cost-effective choice for general outdoor rigging because it provides stronger corrosion protection than electro-galvanized steel.

For coastal or chloride-rich outdoor environments, stainless steel 316 may be more suitable.

Is electro-galvanized rigging suitable for outdoor use?

Electro-galvanized rigging may be used outdoors for limited periods in mild, dry conditions, but it is generally not recommended for long-term exposure to rain, humidity, or salt spray.

Is hot-dip galvanized steel better than stainless steel?

Neither option is universally better. Hot-dip galvanized carbon steel is often more economical for general outdoor use, while stainless steel provides better corrosion resistance in specific humid, coastal, marine, or hygienic environments.

The correct choice depends on the environment, load requirements, standards, and project budget.

Is stainless steel 304 suitable for marine use?

Stainless steel 304 is generally not the preferred choice for continuous marine or coastal salt-spray exposure because chlorides may cause pitting and crevice corrosion.

Stainless steel 316 is usually more suitable for marine environments, but the exact application must still be evaluated.

Does stainless steel 316 rust?

Stainless steel 316 has excellent corrosion resistance, but it is not completely corrosion-proof. Severe chloride exposure, stagnant seawater, contamination, crevices, incompatible chemicals, or insufficient maintenance may still cause corrosion.

Which material is best for shackles and turnbuckles?

For dry indoor use, electro-galvanized carbon steel may be sufficient. For general outdoor use, hot-dip galvanized shackles and turnbuckles are commonly selected. For coastal and marine environments, stainless steel 316 may provide better corrosion resistance.

The product must still have the correct Working Load Limit and be approved for its intended lifting or load-control application.

The lowest purchase price is not always the lowest total cost. Selecting the correct material can reduce corrosion, maintenance, replacement frequency, equipment downtime, and long-term operational risk.

Before placing an order, provide your supplier with details about the intended application, Working Load Limit, operating environment, exposure conditions, required standards, and inspection requirements. This will help ensure that the selected rigging hardware is suitable for the project.
